MIU202T Installation, Operation & Diagnostics Edition: December 28, 2000 Page 13
10. MODEM CONFIGURATION

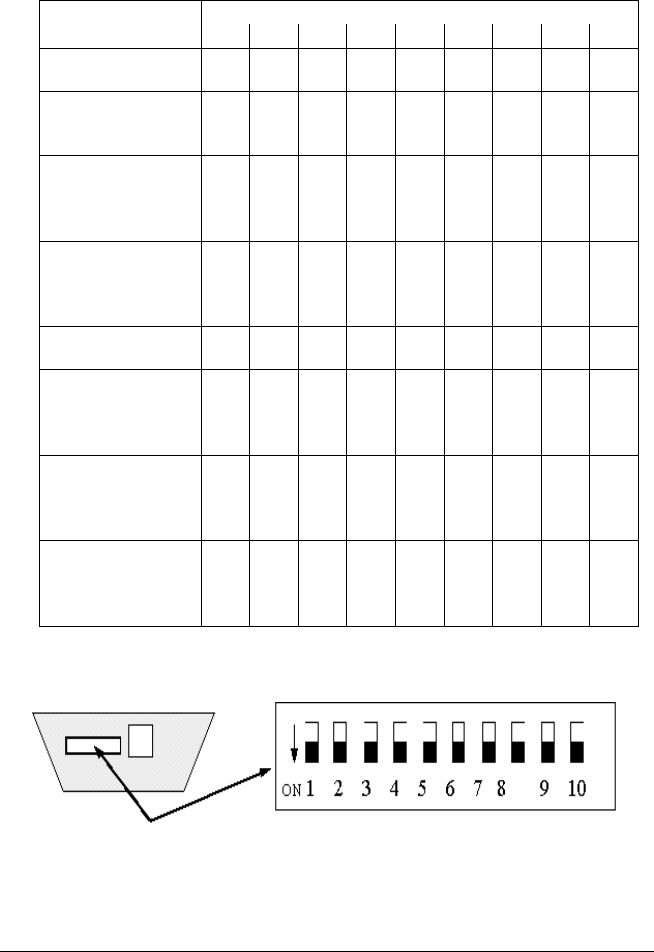

The following table provides the Dip Switch settings required for most
modem application configurations:
Dip Switch Setting
1 2 3 4 5 6 7 8 9
4-Wire
Point-to-Point
ON ON ON ON
4-Wire
Multi-Point
Master
ON ON ON ON
4-Wire
Multi-Point
Slave
Rx Term. OFF
ON ON ON ON ON
4-Wire
Multi-Point
Slave
Rx Term. ON
ON ON ON ON ON ON
2-Wire
Point-to-Point
ON ON ON ON ON ON ON
2-Wire
Multi-Point
Master
Line Term. ON
ON ON ON ON ON ON ON
2-Wire
Multi-Point
Slave
Line Term. ON
ON ON ON ON ON ON ON
2-Wire
Multi-Point
Slave
Line Term. OFF
ON ON ON ON ON ON
For clarity, a blank space = OFF
