TD-8816 ADSL2/2+ Ethernet Router User Guide
6
Chapter 3. Quick Installation Guide
3.1 Configure PC
After you directly connect your PC to the TD-8816 or connect your adapter to a Hub/Switch which
has connected to the Router, you need to configure your PC’s IP address. Follow the steps below
to configure it.

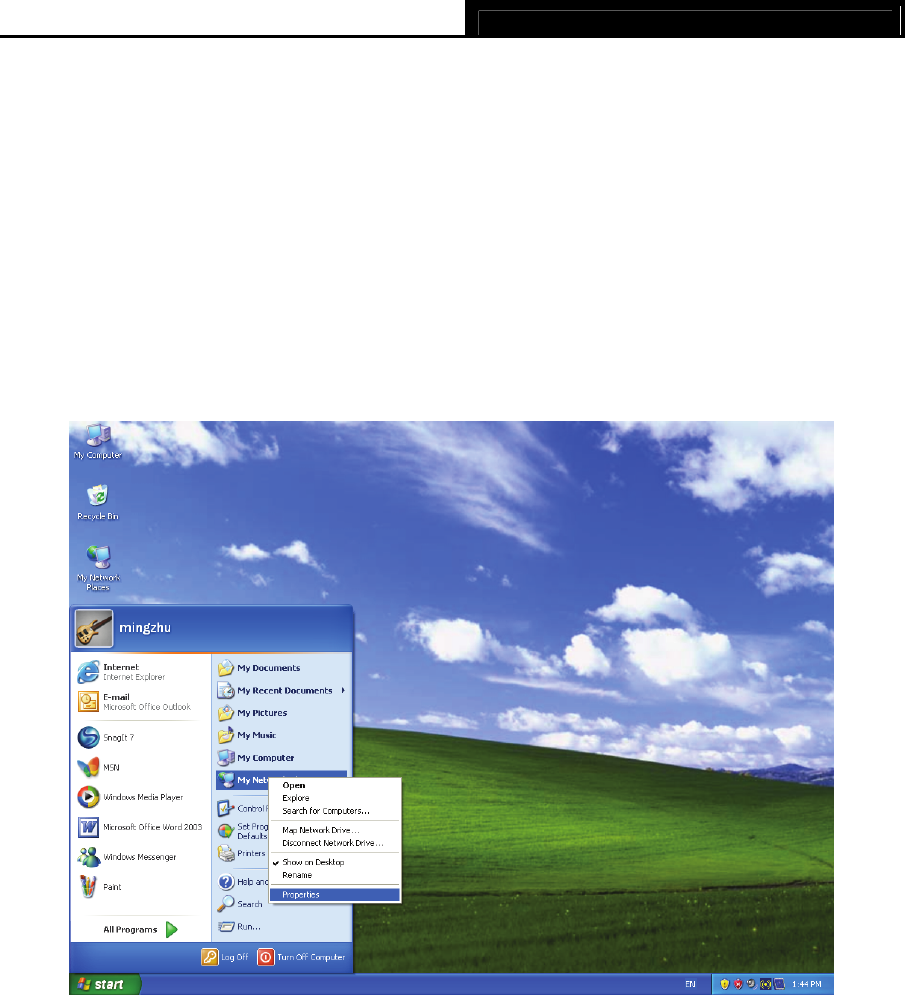

Step 1: Click the Start menu on your desktop, right click My Network Places, and then select
Properties (shown in Figure 3-1).
Figure 3-1
Step 2: Right click Local Area Connection (LAN), and then select Properties.
