Configuration
Standard Control Panel Parameters
92
P1009874-002 Xi4™/RXi4™ User Guide 1/7/10

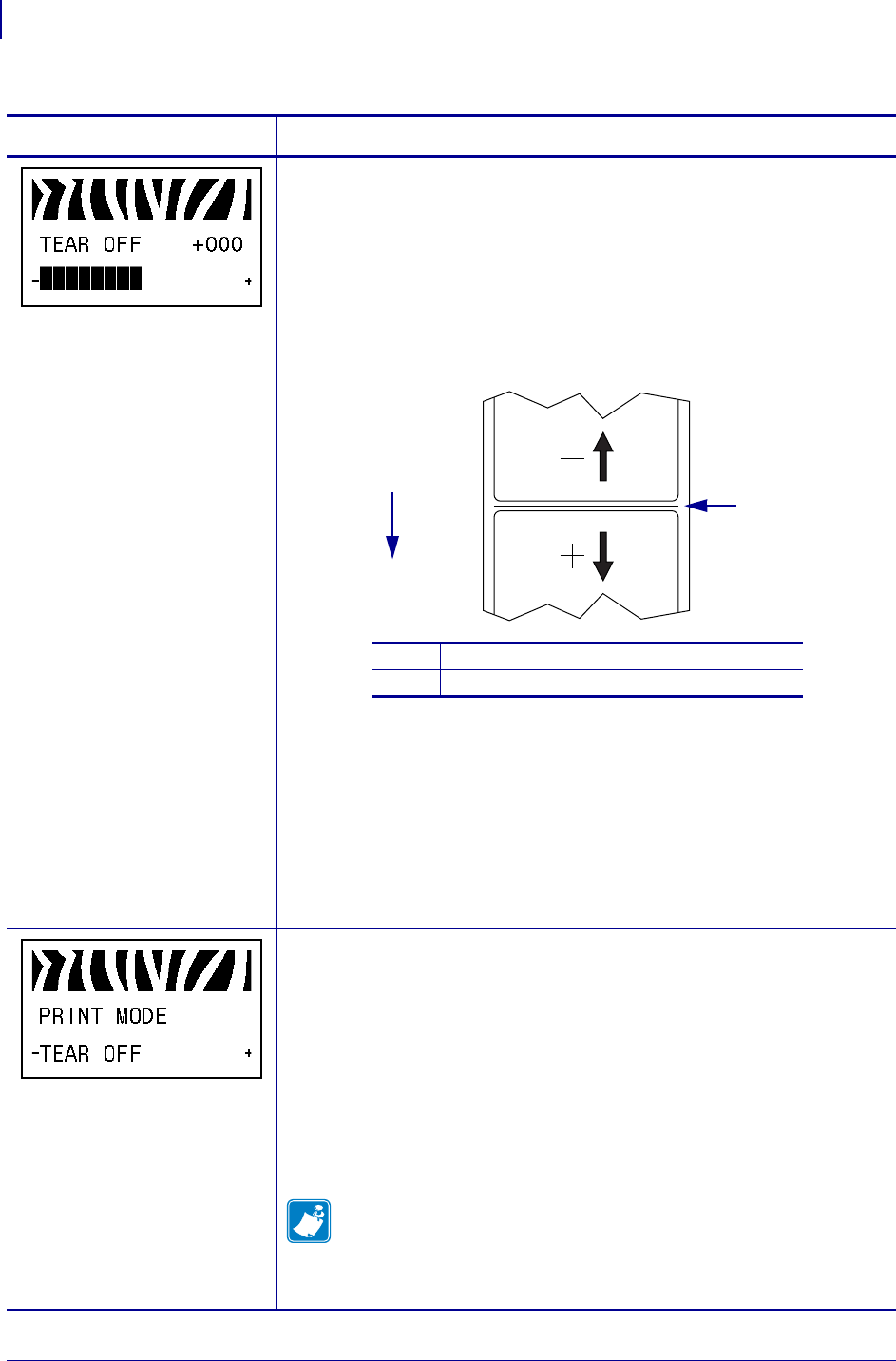

Adjust the Tear-Off Position
This parameter establishes the position of the media over the
tear-off/peel-off bar after printing.
See Figure 14. Higher numbers move the media out (the tear line moves
closer to the leading edge of the next label), and lower numbers move the
media in (the tear line moves closer to the edge of the label just printed).
Figure 14 • Tear-Off Position Adjustment
Default Value: 0
Range: -120 to +120
To change the value shown:
1. Press PLUS (+) to increase the value. Each press adjusts the tear-off
position by four dot rows.
2. Press MINUS (-) to decrease the value. Each press adjusts the tear-off
position by four dot rows.
Select Print Mode
This parameter tells the printer how printed labels will be removed. Make
sure that you select a print mode that is compatible with your printer and
printer options. For information about how the print modes work with
different printer options, see Print Modes and Printer Options on page 36.
Default Value (non-RFID printers): TEAR-OFF
Default Value (RFID printers): RFID MODE
Selections: TEAR-OFF, PEEL-OFF, CUTTER, DELAYED CUT, RFID
MODE, REWIND
Note • RFID MODE should only be used with RFID media on
RFID printers.
To change the value shown:
1. Press PLUS (+) or MINUS (-) to scroll through the options.
Table 8 • Printer Parameters (Sheet 2 of 22)
Language/Parameter
Action/Explanation
1
Media direction
2
Factory-set tear line location at position 00
1
2
