132
Triggering Examples
Special Displays
You cannot view state analyzer data in the waveform display. However,
you can view timing analyzer data and oscilloscope data
simultaneously.
You can also position X and O Time markers on the waveform display.
Once set, the time markers will be displayed in both the listing and the
waveform display areas. Note that even if you set X and O Time
markers in another display, you must also set the Time markers in the
Mixed Display if Time markers are desired.
NOTE: You can use the Mixed Display feature in the analyzer menu to show both
waveforms and trace lists in the same display, making it easier to correlate the
events of interest.

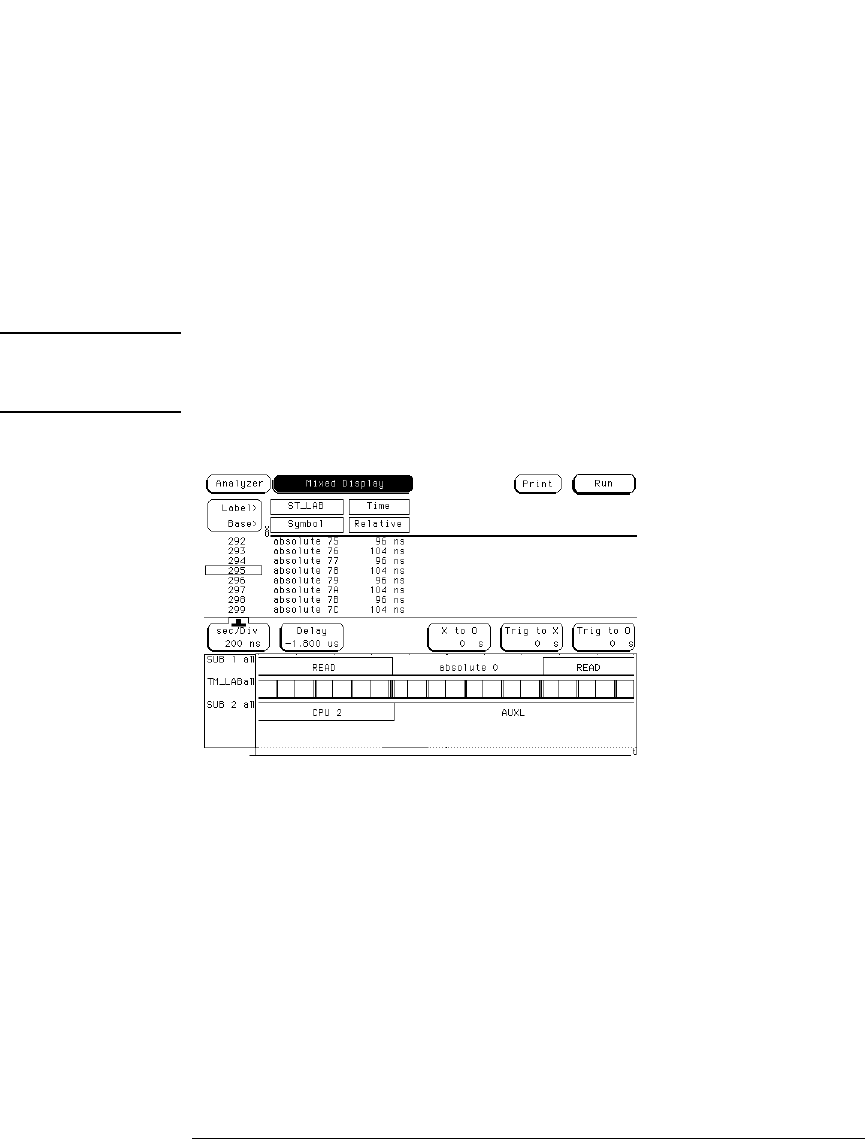

Mixed Display using Timing and State in the 1671G
