Configuring Virtual LANs
3-25
Configuring Virtual LANs
You can use the VLAN configuration menu to assign any port on the switch to any of
up to 256 VLAN groups. In conventional networks with routers, broadcast traffic is
split up into separate domains. Switches do not inherently support broadcast
domains. This can lead to broadcast storms in large networks that handle a lot of
IPX and NetBEUI traffic. By using IEEE 802.1Q compliant VLANs and GARP VLAN
Registration Protocol, you can organize any group of network nodes into separate
broadcast domains, confining broadcast traffic to the originating group. This also
provides a more secure and cleaner network environment. For more information on
how to use VLANs, see “Virtual LANs” on page 4-2. The VLAN configuration
screens are described in the following sections.
VLAN Basic Information

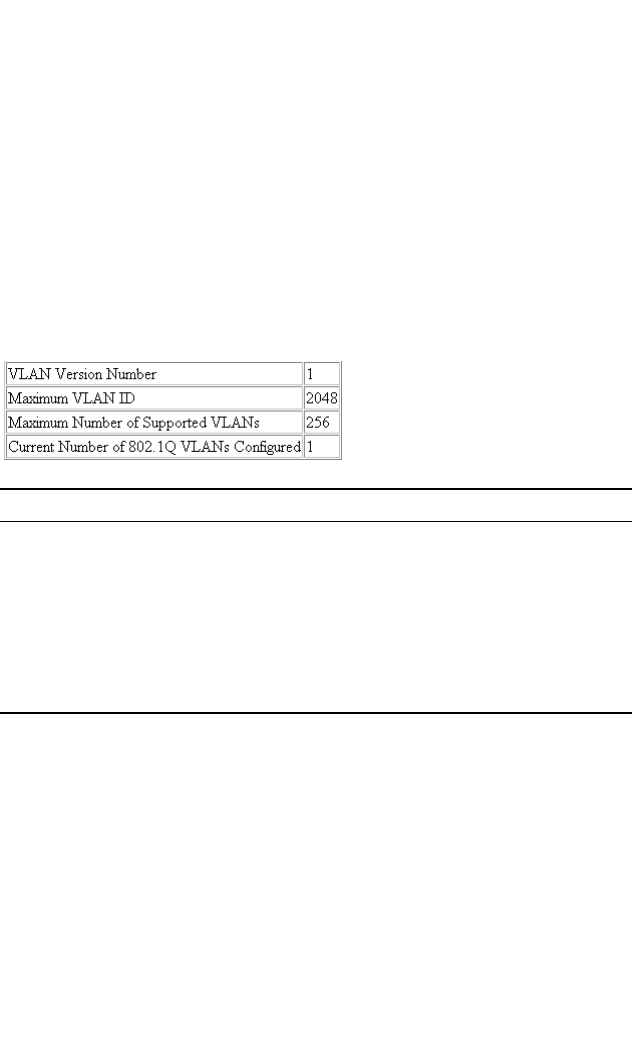

The VLAN Basic Information screen displays basic information on the VLAN type
supported by this switch.
Note: All ports are assigned only to VLAN 1 by default.
Parameter Description
VLAN Version Number The VLAN version used by this switch as specified in the IEEE 802.1Q
standard.
Maximum VLAN ID Maximum VLAN ID recognized by this switch.
Maximum Number of
Supported VLANs
Maximum number of VLANs that can be configured on this switch.
Current Number of
802.1Q VLANs
Configured
The number of VLANs currently configured on this switch.
