Page 21
Chapter 4: Notifications
9. Click on “Next” and the following screens will appear. On these screens you can select the parameters for when to send the
SNMP trap notification.
10. Select the expansion board and then the sensor.

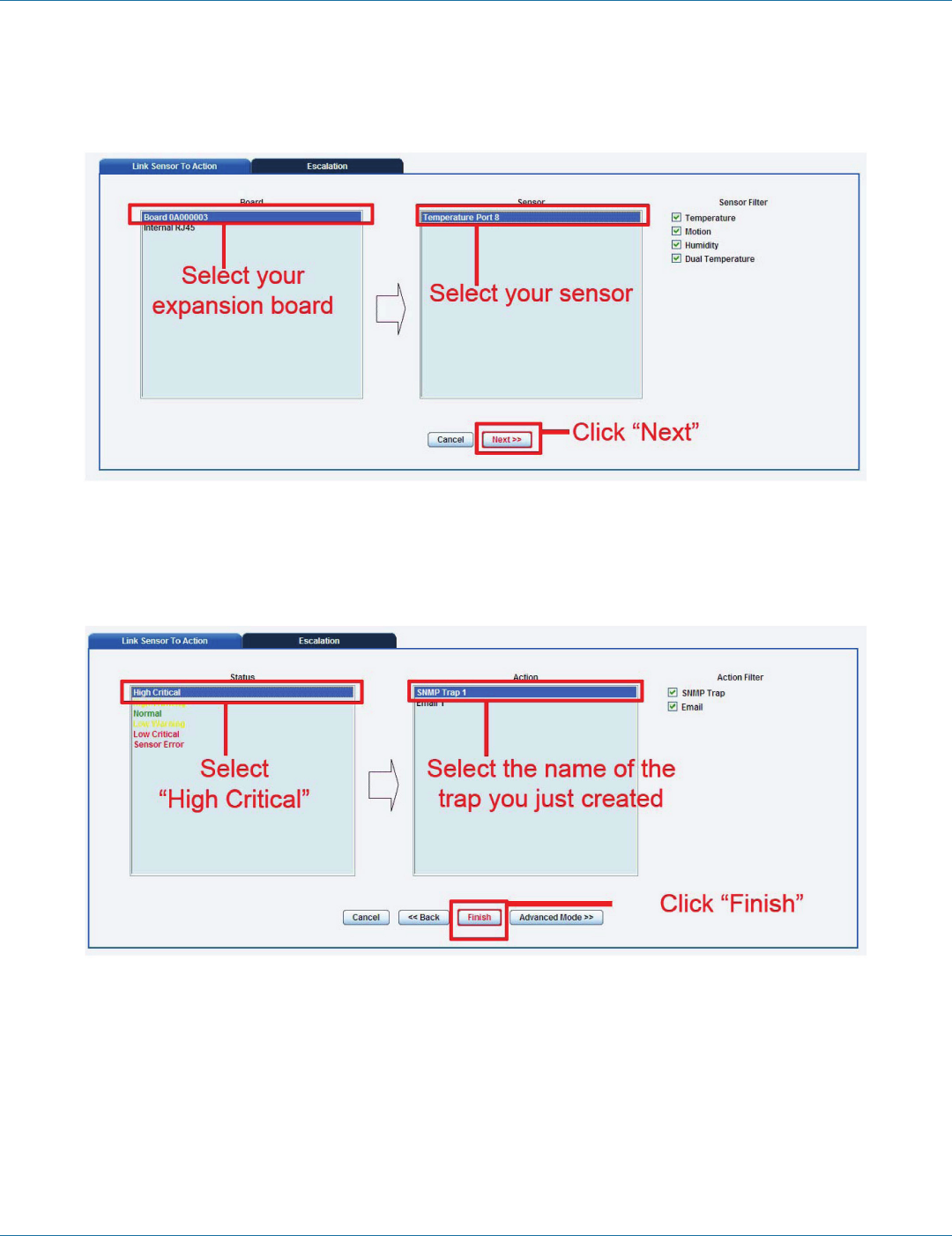

Figure 4-5. Selecting the expansion board and sensor.
11. Select the status, and then the action.
Figure 4-6. Selecting setting and trap name.
NOTE: In the example above, the SNMP trap is bound to the temperature sensor that’s connected on Port 1. The trap will be sent
when the sensor reads a “High Critical” and we bind this to the SNMP trap we just created and named “SNMP Trap 1.”
