Page 9
Chapter 2: Overview
2.3.2 Back Panel

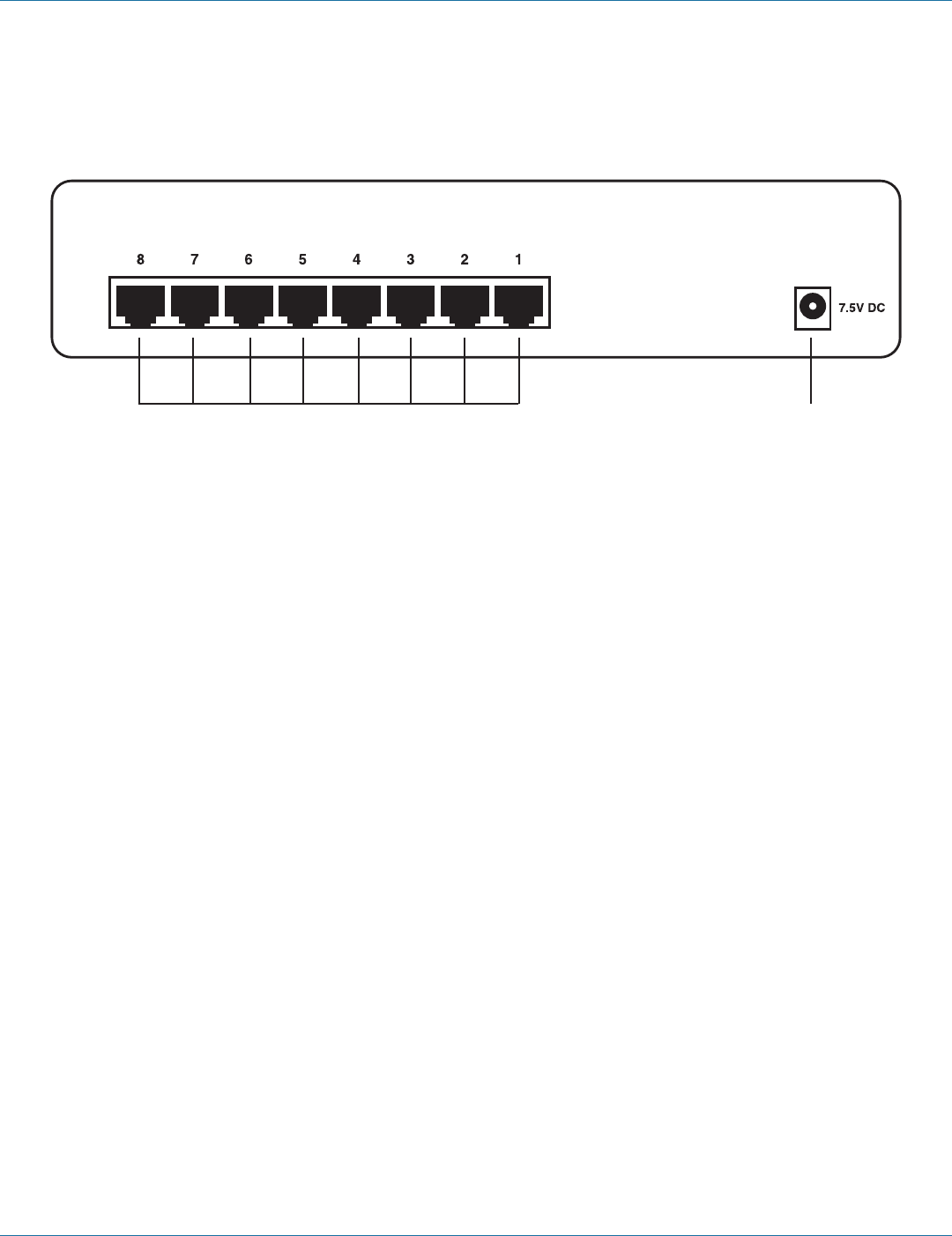

Figure 2-2 shows the ServSensor EXP 8’s back panel, and Table 2-3 describes its components.
5
6
Figure 2-2. Back panel.
Table 2-3. Back panel components.
Number Component Description
5 (8) RJ-45 ports The sensor ports, numbered 1–8, are used to connect intelligent sensors to
the ServSensor EXP 8.
6 (1) barrel connector This is a 7.5-VDC plug. Use a 7.0–9-V, 2.5-A power supply (included).
