Card Installation and Node Startup 3-39
Attaching Peripherals
LAN Connection for the Network Management Station
If thenetwork is largeor extensivenetwork statistics areneeded, an Ethernetport (LAN port)should
be used. Larger networks produce a greater flow of statistics data between the node and the Cisco
WAN Manager workstation, so a higher speed Ethernet port is suitable. Figure 3-17 illustrates this
connection. Accessinga nodeover an Internetconnection requiresthe operator touse cnflanto enter
the Internet Protocol (IP) address, IP subnet mask, TCP service port, and gateway IP address.

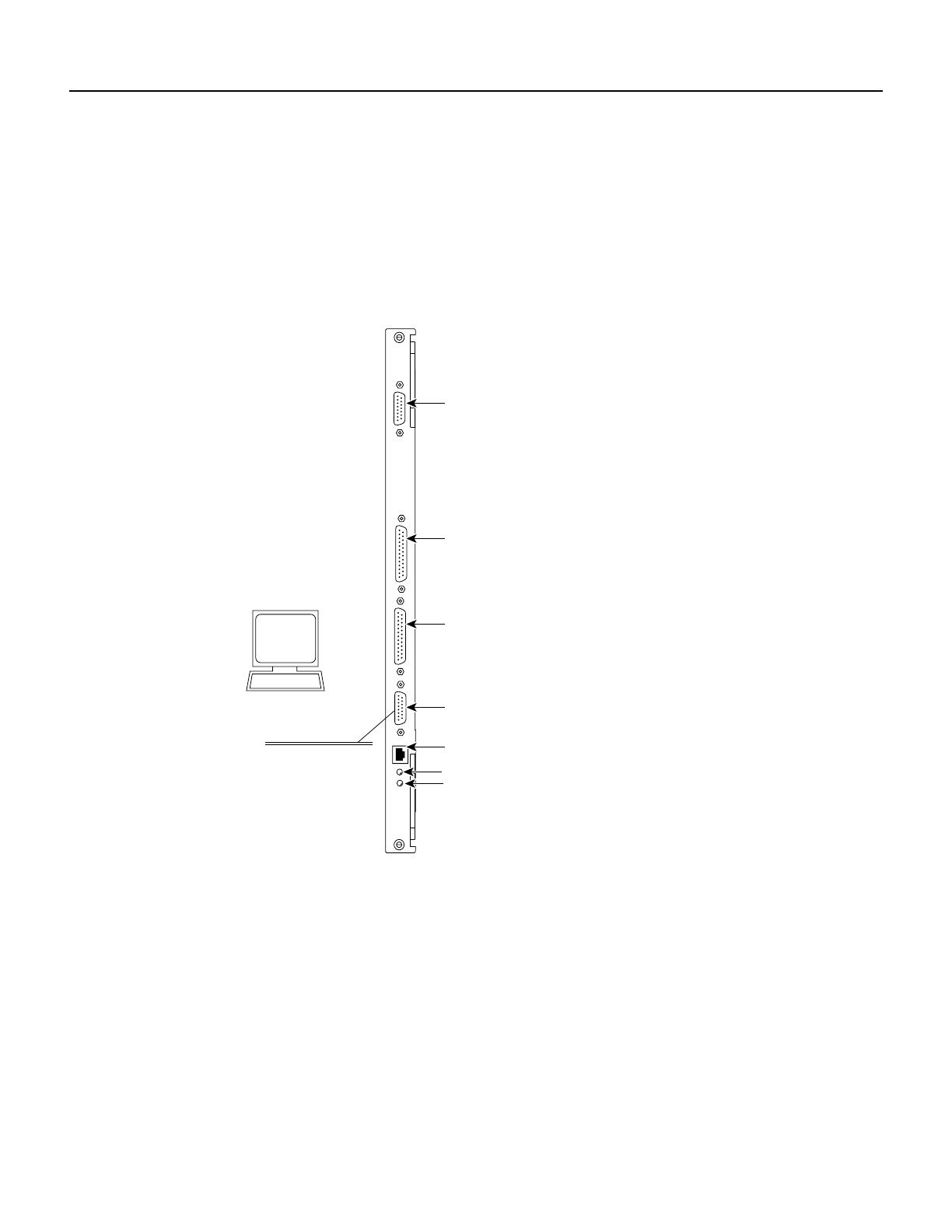

Figure 3-17 LAN Connection to SCM
SCM
External
clock
(DB-15)
Control
terminal
(DB-25)
Auxiliary
port
(DB-25)
LAN AUI
(DB-15)
Fail (red)
Active (green)
PSM
H8359
Cisco WAN Manager or control
terminal
LAN
