Dual-Speed Stackable Hub Web-based Management User’s Guide
Web-based Network Management92

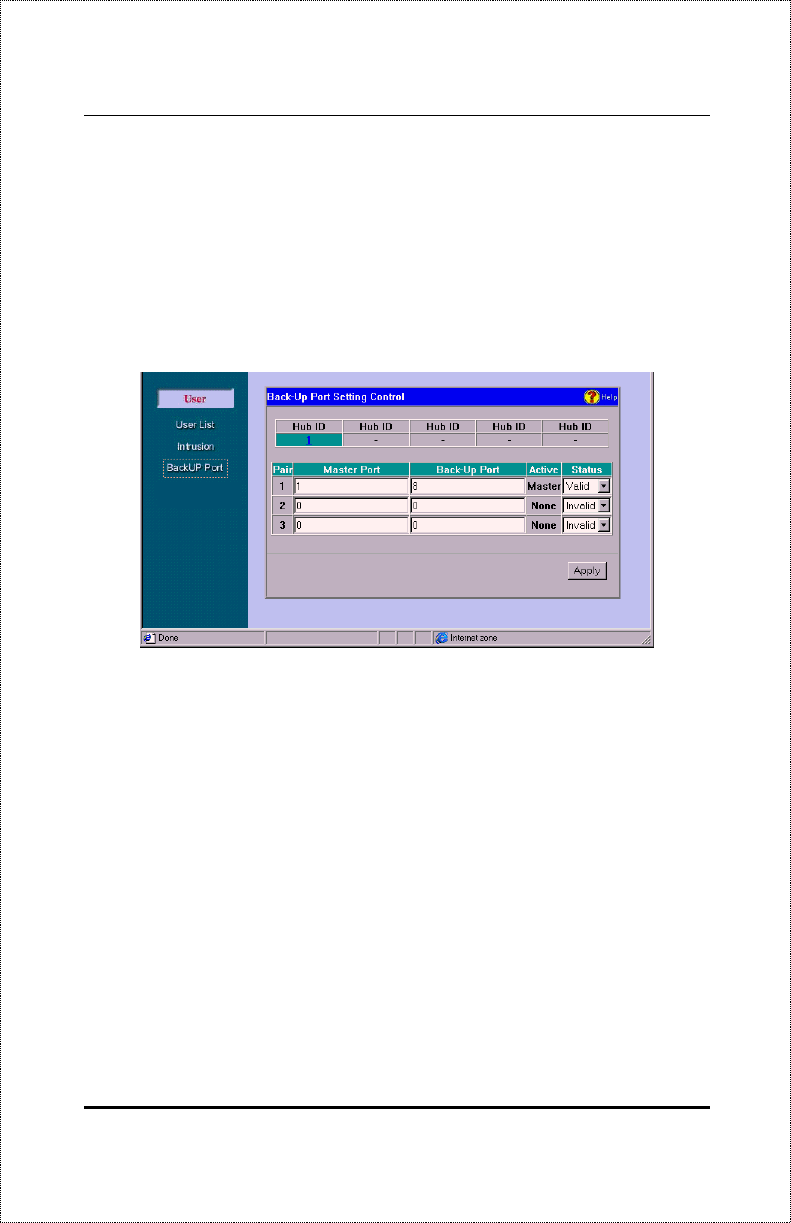

Back-Up Port
A
Back-Up Port
is a linked-pair consisting of a
master port
and a
back-up
port
. The back-up port is immediately enabled should the master port fail. If
the master port returns (from failure), the back-up link traffic is switched
back to the master link. A maximum limit of 3 back-up are allowed per
Hub.
Hub ID
Select a Hub from the hub stack.
Master/ Back-Up Port
Enter the port ID numbers to create a back-up
pair.
Active
Displays
None
, if both ports are inactive;
Master
, if master port
is active; and
Back-Up
, if back-up port is active.
Status
Select
Valid
to enable the pair, else
Invalid
to disable the pair.
RMON
RMON is an application for managing devices that support Remote Moni-
toring (RMON) Management Information Base (MIB) for Ethernet. The
