Frequently Asked Questions (continued)

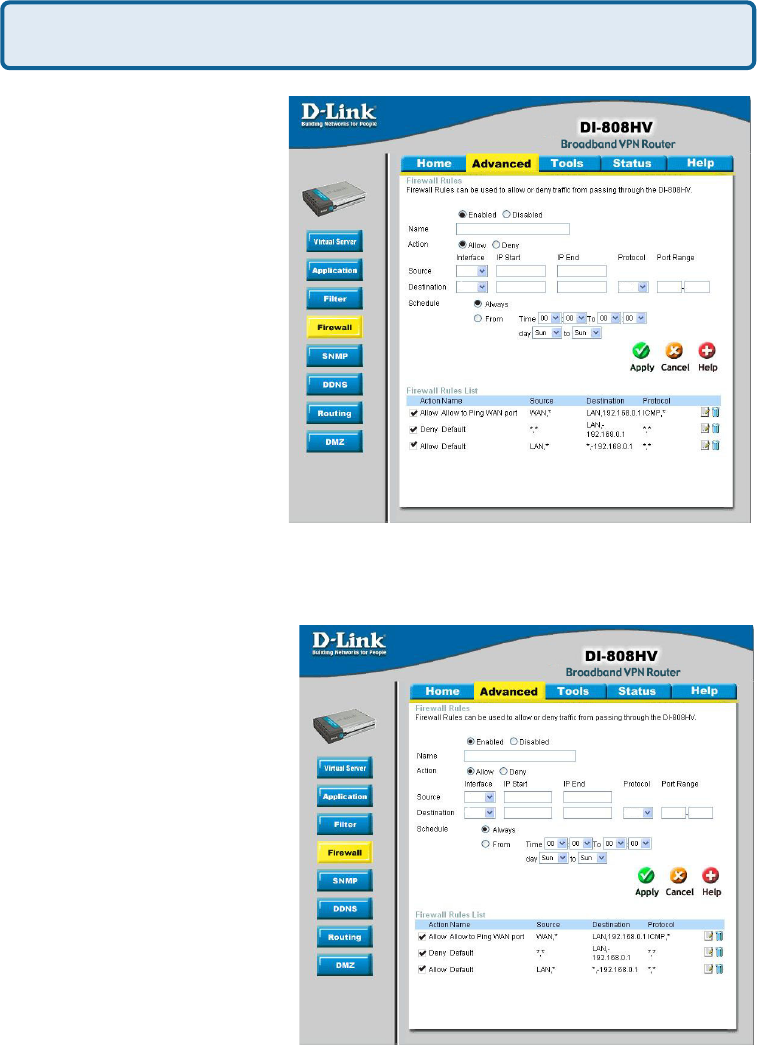

Step 3 Create a new firewall
rule:
Leave the second box empty. Under Protocol, select UDP. In the port range boxes,
enter 5060 in the first box and
leave the second box empty.
Click Always or set a
schedule.
Step 4 Click Apply and then
Continue.
Step 5
Repeat steps 3 and 4 enter
ichat2 and open ports 16384-
16403 (UDP).
How do I set up my DI-808HV to use iChat? -for Macintosh users-
(continued)
Click Enabled.
Enter a name (ichat1).
Click Allow.
Next to Source, select
WAN under interface.
In the first box, enter an *.
Leave the second box
empty.
Next to Destination,
select LAN under
interface.
Enter the IP Address of
the computer you are
running iChat from.
ichat1
WAN
LAN
192.168.0.100
UDP
5060
ichat2
WAN
LAN
192.168.0.100
UDP
1638 1640
