Electrical Isolation: 1500 Vdc to system logic
and 500Vdc to chassis
Surge Suppression: 31 Vdc transorb across
input and to eld common
Terminations: Pluggable, max wire size is
14 gauge. Set, reset, common and Shield
terminals per input
Status Indication: Status LED per input, module
PASS/FAIL LED

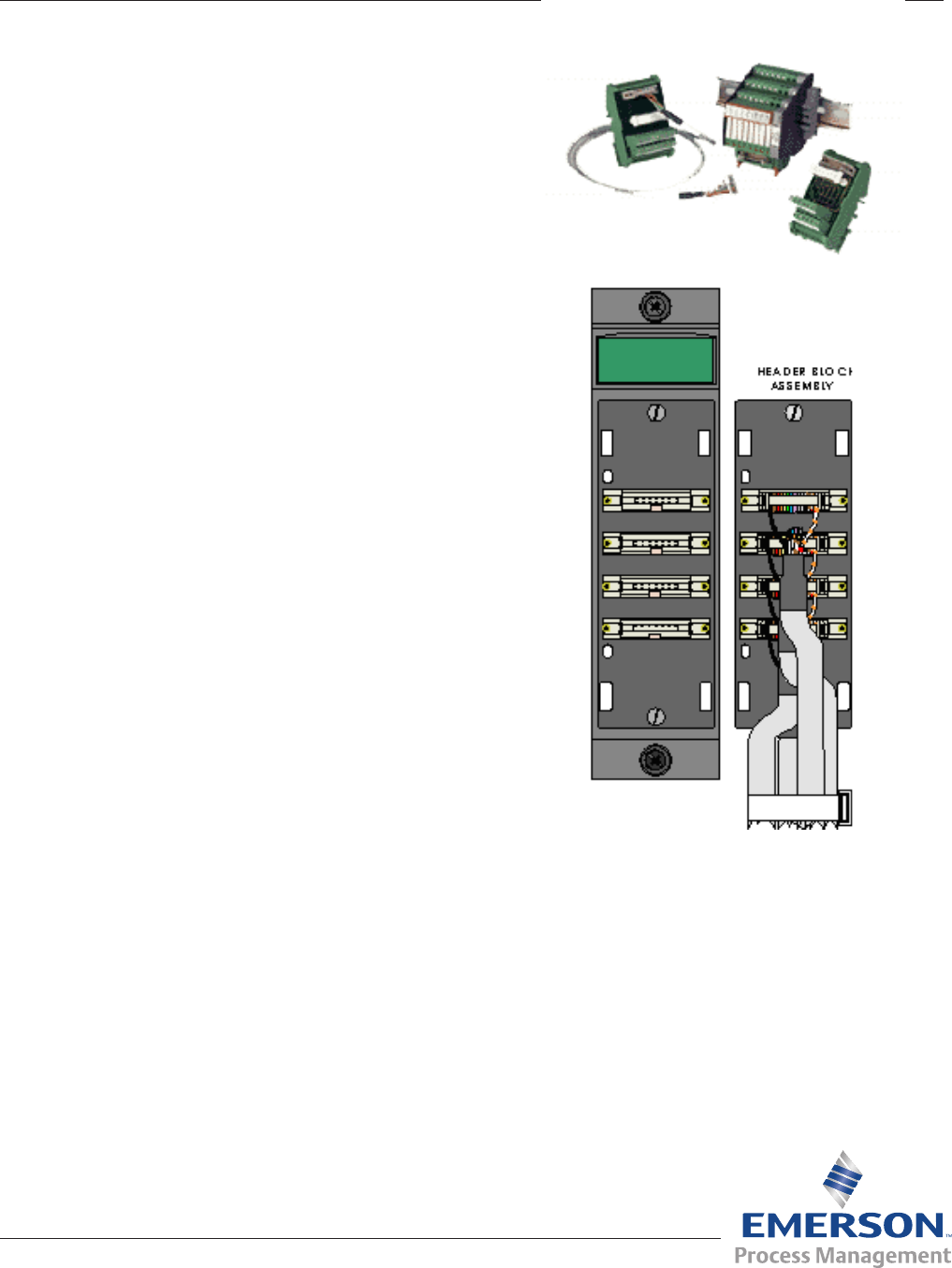

Remote Termination Modules
The remote termination option for ControlWave Lo-
cal I/O modules provides a convenient alternative
to the standard direct connect termination. Remote
terminiations allow a concentration of electrical con-
nections from one or more controllers to be located
in one area such as the rear of a 19" cabinet.
All Remote Termination modules are standard DIN-
rail mountable and connect to the I/O module with
from one to four pre-wired connector cables. To
simplify installation, all I/O modules use the same
cable.
Features
Removes electrical connections from the
controller
Passive terminations are DIN-rail mountable
Options for fusing, relays and 120 VAC I/O
A single common connector cable for all I/O
Up to 14 AWG wire with compression screw
terminals
Available Modules
AI: 4 points, no fuses
AI: 4 points, with fuses
AO: 2 points, no fuses
AO: 2 points, with fuses
DI: 24 Vdc - 8 points, no fuses
DI: 24 Vdc - 8 points, with fuses
DI: 120 VAC - 8 points
•
•
•
•
•
•
•
•
•
DO: 24 Vdc - 8 points, no fuse
DO: 24 Vdc - 8 points, with fuse
DO: 8 points - 6 Amp relay
Cable Lengths
18 inch cable
39 inch cable
6-1/2 foot cable
13 foot cable
•
•
•
•
