MVP 104GX Installation
Installation, cont’d
2-6

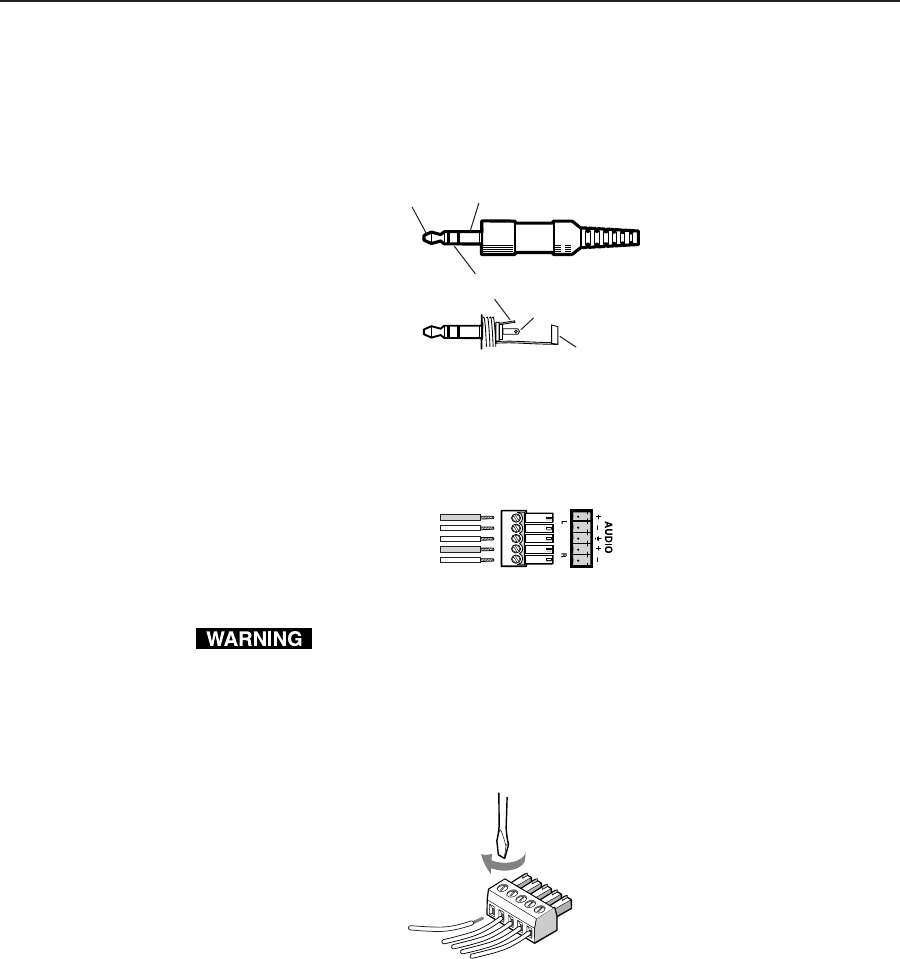

Balanced audio
1. Attach the audio cable to a balanced speaker input connector (tip, ring,
and sleeve), as shown here.
2. Attach the other end of the audio cable to the audio cable connector
(Extron part number 10-319-10). Fasten the captive screws inside the
audio cable connector as shown in figure 2-4.
Connect the sleeve(s) to ground (GND). Connecting the sleeve(s) to a
negative (-) terminal will damage audio output circuits.
3. Slide the audio cable connector into the audio connector of the MVP
104GX, and plug the speaker end of the audio cable into the speakers.
Figure 2-4 — Fastening captive screws
Balanced Audio
Tip
Ring
Sleeve (s)
Tip
Ring
Tip (+)
Sleeve
Tip (+)
Ring (-)
Sleeve (ground)
