Hardware Installation Process- 19 -

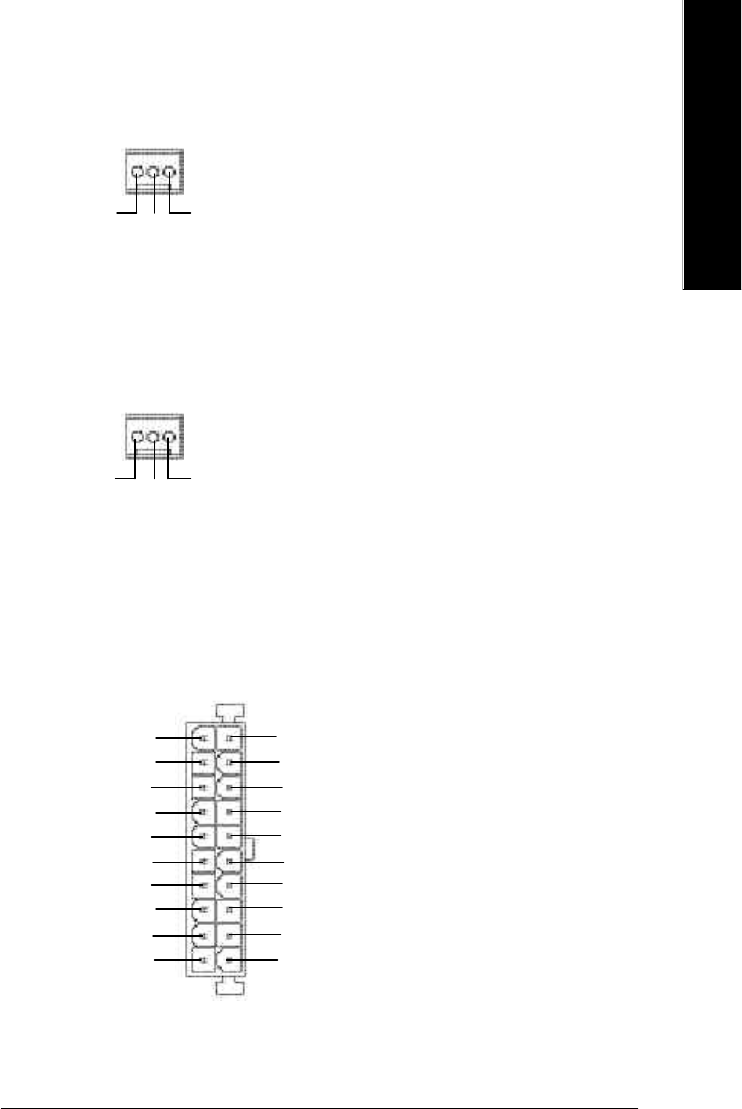

1) CPU_FAN (CPU FAN Connector)
2) SYS_FAN (System FAN Connector)
3) ATX (ATX Power)
Ø Please note, a proper installation of the CPU
cooler is essential to prevent the CPU from run
ning under abnormal condition or damaged by
overheating.The CPU fan connector supports
Max. current up to 600mA .
Ø AC power cord should only be connected to
your pow er supply unit after ATX pow er cable
and other related devices are firmly connected
to the mainboard.
+12V/Control
GND
1
Sense
+12V/Control
GND
1
Sense
Ø This connector allows you to link with
the cooling fan on the sy stem case to
lower the sy stem temperature.
PS-ON(Soft On/Off)
3.3V
GND
GND
GND
GND
VCC
VCC
-12V
20
-5V
1
5V SB (Stand by +5V)
3.3V
3.3V
GND
GND
GND
VCC
VCC
+12V
Power Good
