- 22 -GA-7VKML Series Motherboard
English

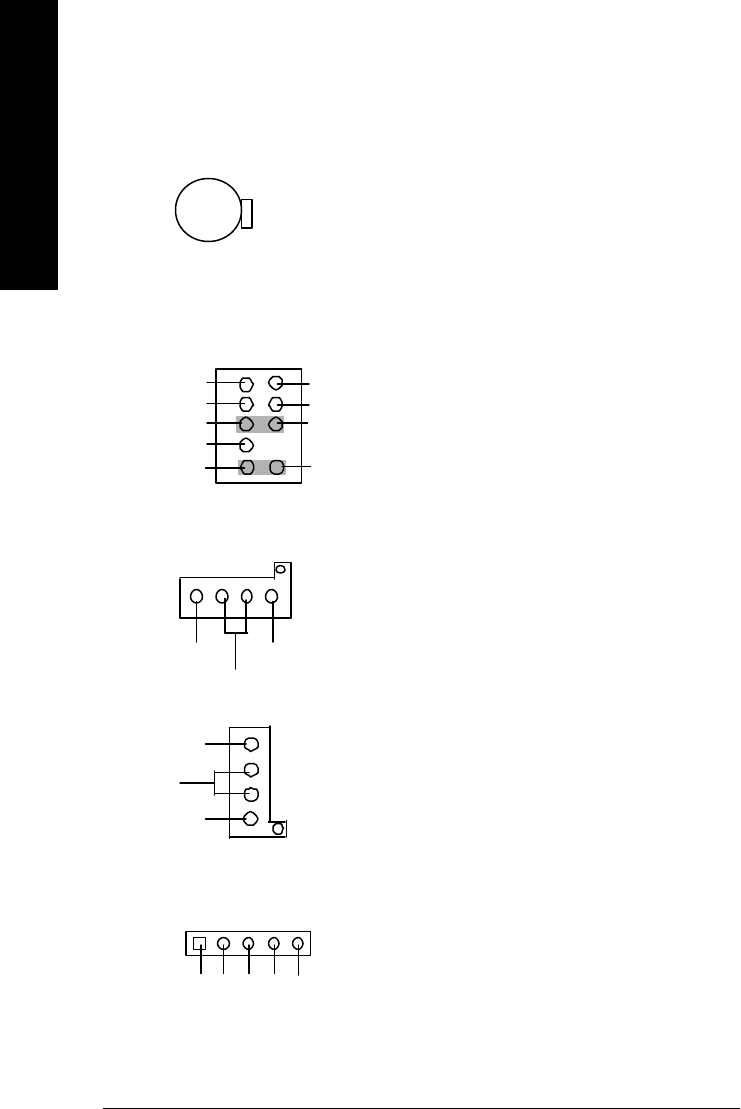

9 ) BAT1 (Battery)
CAUTION
v Danger of explosion if battery is incorrectly
replaced.
v Replace only with the same or equivalent
type recommended by the manufacturer.
v Dispose of used batteries according to the
manufacturer’s instructions.
+
10 ) F_AUDIO (Front Audio)
ØIf y ou want to use " Front Audio" connector, you
must move 5-6, 9-10 Jumper. In order to utilize
the front audio header, your chassis must have
front audio connector. Also please make sure
the pin assigment on the cable is the same as
the pin assigment on the MB header. To find out
if the chassis y ou are buying support front
audio connector, please contact your dealer.
9
10
Front Audio
(L)
1
Reserved
GND
Rear Audio (R)
Rear Audio (L)
Front Audio (R)
2
MIC
REF
POWER
11 ) CD_IN (CD Audio Line In)
CD-L
GND
CD-R
1
Ø Connect C D-ROM or DVD-ROM audio out
to the connector.
12 ) AUX_IN (AUX_IN Connector )
AUX-L
GND
AUX-R
1
Ø Connect other device(such as PCI TV Tunner
audio out )to the connector.
13 ) IR (IR)
Ø Please note, Be careful with the polarity of
the IR connector while you connect the IR.
Please contact you nearest dealer for optional
IR device.
1
VCC(+5V)
NC
IR data input
IR data output
GND
