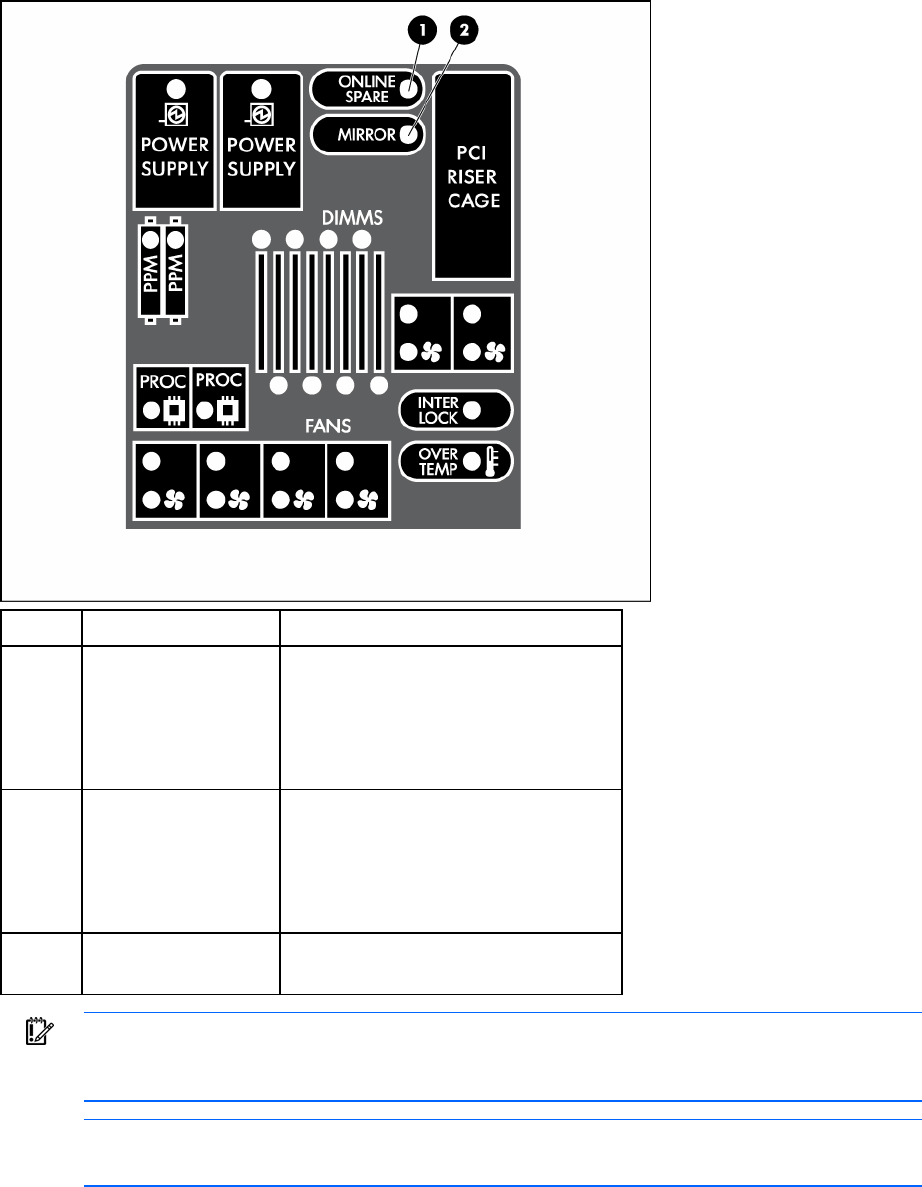

Systems Insight Display LEDs
Item Description Status
1 Online spare Off = No protection
Green = Protection enabled
Amber = Memory failure occurred
Flashing amber = Memory configuration
error
2 Mirror Off = No protection
Green = Protection enabled
Amber = Memory failure occurred
Flashing amber = Memory configuration
error
All other LEDs Off = Normal
Amber = Failure
IMPORTANT: If more than one FBDIMM slot LED is illuminated, further troubleshooting is
required. Test each bank of FBDIMMs by removing all other FBDIMMs. Isolate the failed
FBDIMM by replacing each FBDIMM in a bank with a known working FBDIMM.
NOTE: The HP Systems Insight Display LEDs represent the system board layout.
