Getting Started
DMX 400/430 Operator’s Manual 13
1.7 Ribbon Loading
In thermal-transfer mode, ribbons must be attached to the Take-up
Hub. The ribbon can be wound directly on to the hub and held with
a clasp, or a used ribbon core can be placed on the hub.
1.7.1 Ribbon Loading Instructions
1. Disengage the Printhead by rotating the Head-Lift Lever
counterclockwise to the ‘up’ position.
2. Slide the Ribbon on to the Ribbon Supply Hub. Route the
ribbon, (see Figure 1-8), and attach the ribbon to the Ribbon
Take-up Hub.
3. Engage the Printhead by rotating the Head-Lift Lever clockwise
and locking it in the ‘down’ position.

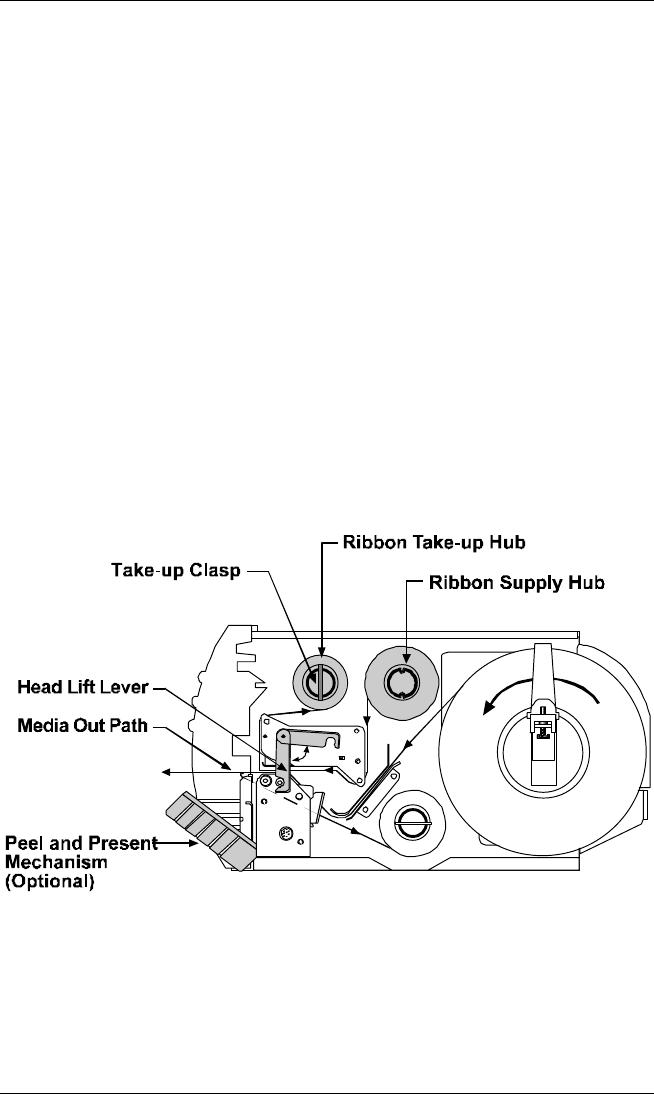

Figure 1-8 Ribbon Loading
