Front-right and right-side cover assembly
1. Before proceeding, remove the following components:
DIMM cover. See
DIMM cover and DIMM on page 57.
Formatter cover. See
Formatter cover and formatter PCA on page 60.
Cartridge-door assembly. See
Cartridge-door assembly on page 71.
NOTE: The figures in this section show the cartridge-door assembly installed. However, it
might be easier to reinstall the front-right and right-side cover assembly if the cartridge-door
assembly is removed.
Control panel. See
Control panel on page 74.
2. Remove two screws (callout 1).

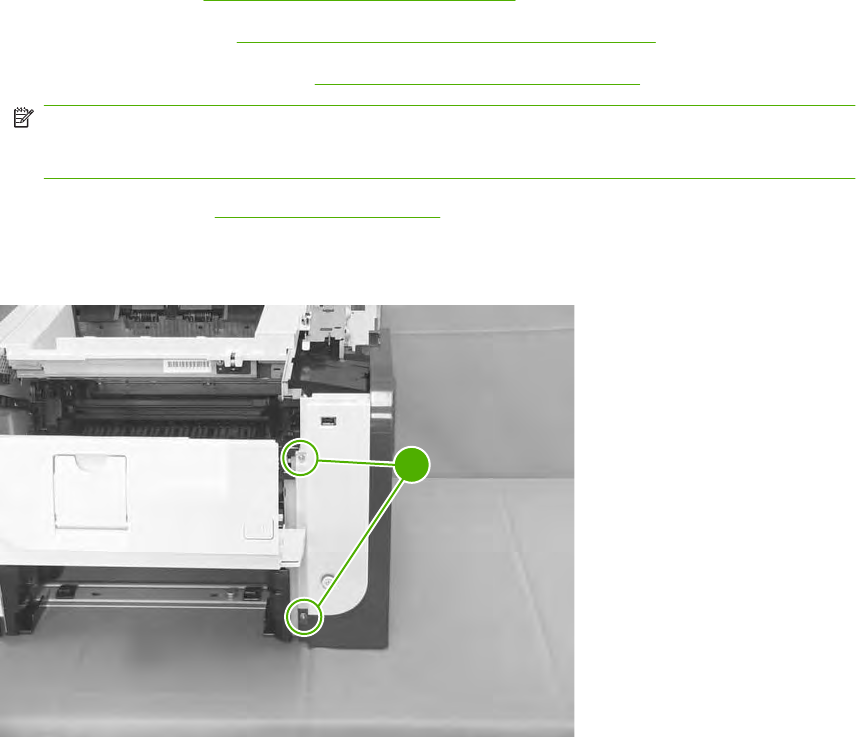

Figure 2-46 Remove the front-right and right-side cover assembly (1 of 6)
1
