PLANET NOVASwitch series
12

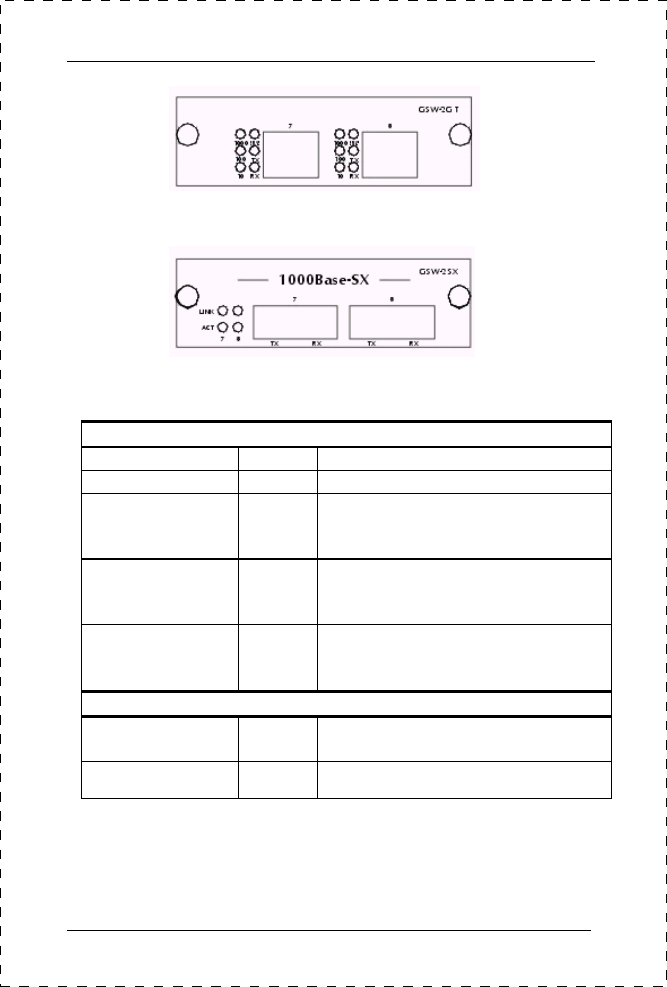

GSW-2GT module front panel
GSW-2SX module front panel
LED indicators
GSW-601S and GSW-2GT
PWR Green Lit: Power on
SMART Green Lit: CPU initial completed
10/100/1000
Green
Lit: indicate link status and traffic
Speed (10 for 10M, 100 for 100M,
1000 for 1000M)
TX/ RX
Green
Lit: indicate data traffic status
(TX for transmitting, RX for
receiving)
FDX/ COL
Green
Lit: Full-Duplex
Blink: Half-Duplex/ Collision
Off: Half-duplex or not connected
GSW-2SX
LINK
Green Lit: indicate link status and traffic
speed
ACT Green Blink: activity
Reset button
At the right side of front panel, the reset button is designed
for reconfiguring the switch without turn off and on the
power.
