108 Chapter 3

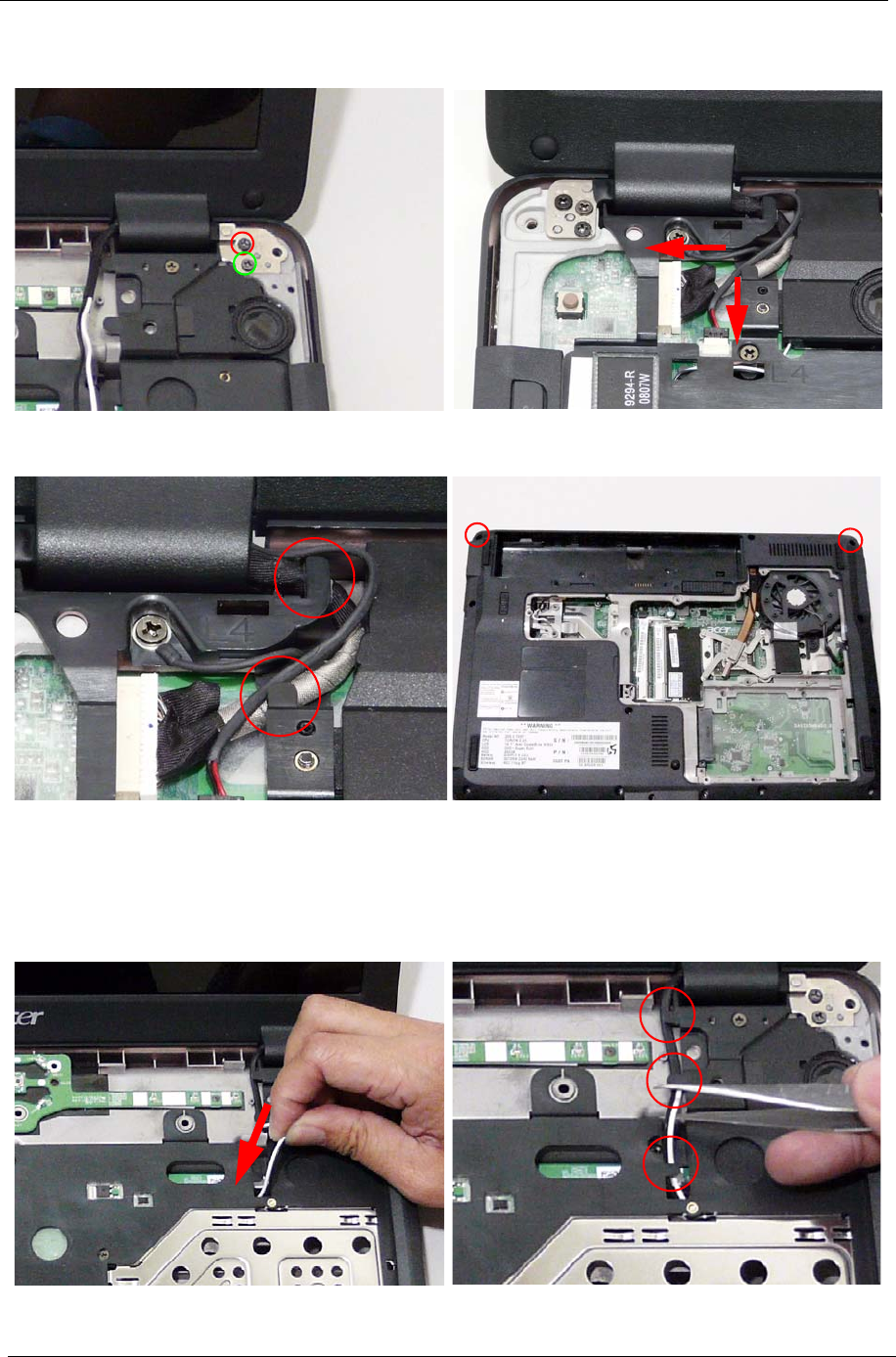

Replacing the Antenna Cables
IMPORTANT:Ensure that the antenna cables are not pinched under the LCD hinge.
3. Replace the two securing screws in the right side
hinge.
4. Connect the LCD cables as shown.
5. Ensure that the LCD cables follow the cable
channel and use all the available clips.
6. Turn the computer over and replace the two
securing screws.
1. Insert the antenna cables through the chassis and
pull them completely through from the underside.
2. Place the Antenna cables in the cable channel
using all available clips.
