Chapter 3 79
Removing the LCD Panel
CAUTION: The LCD module displayed here may be different from model purchased.
1. See “Removing the Camera Module” on page 78.

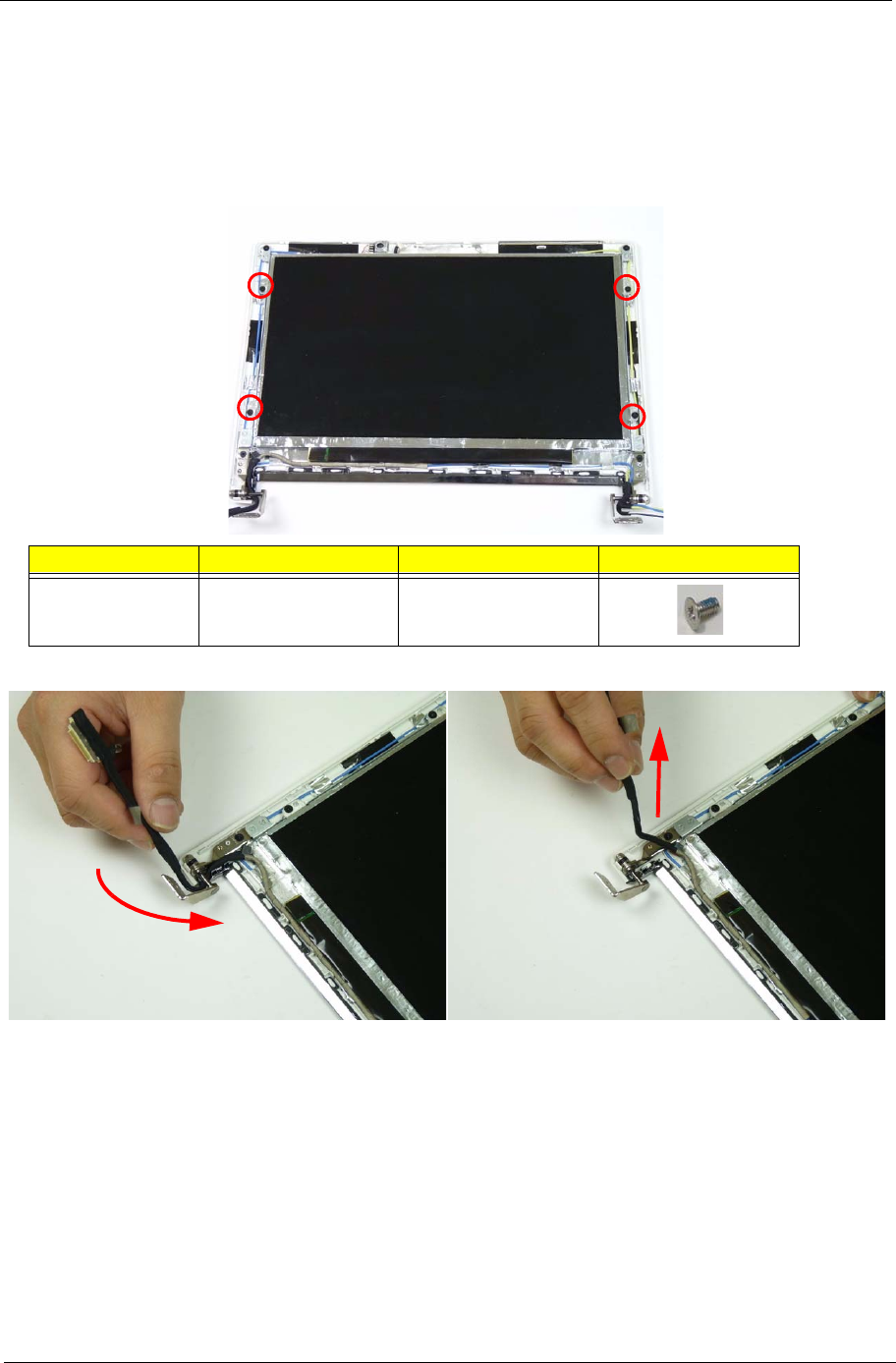

2. Remove the four (4) securing screws from the LCD Panel.
NOTE: Remove cables from hinges before removing screws.
3. Unwrap and separate the LVDS cable from the left hinge.
Step Size Quantity Screw Type
LCD Panel M2*3 4
