2 Introduction
2.1 Product description
i
PROTECT 1.M ("M" for modular structure) is an
U
ninterruptible Power Supply (UPS) for
important loads such as small data centres,
servers, network components,
telecommunication facilities and the like.
The PROTECT 1.M connection to the mains can be either
three or one-phase. The load connection, i.e. the UPS output,
is always one-phase. The online-/double-converter technology
guarantees the highest levels of reliability and performance.
This standard product is designed as a highly intelligent
module construction with a rack-type design. One module of
the AEG USV PROTECT 1.040 corresponds to an UPS with
full functions. Depending on the requirements for output power
and serviceability, the user can increase or reduce the number
of modules in the AEG UPS PROTECT 1.M to achieve an
optimum price/ performance ratio.
Module for UPS
communikation
& LCD display
PROTECT
1.040
UPS module
1
PROTECT
1.040
UPS module
2
PROTECT
1.040
UPS module
6
L1
L2 L3
UPS INPUT
N
UPS OUTPUT
NL
Battery system
+
_
Connection
terminals

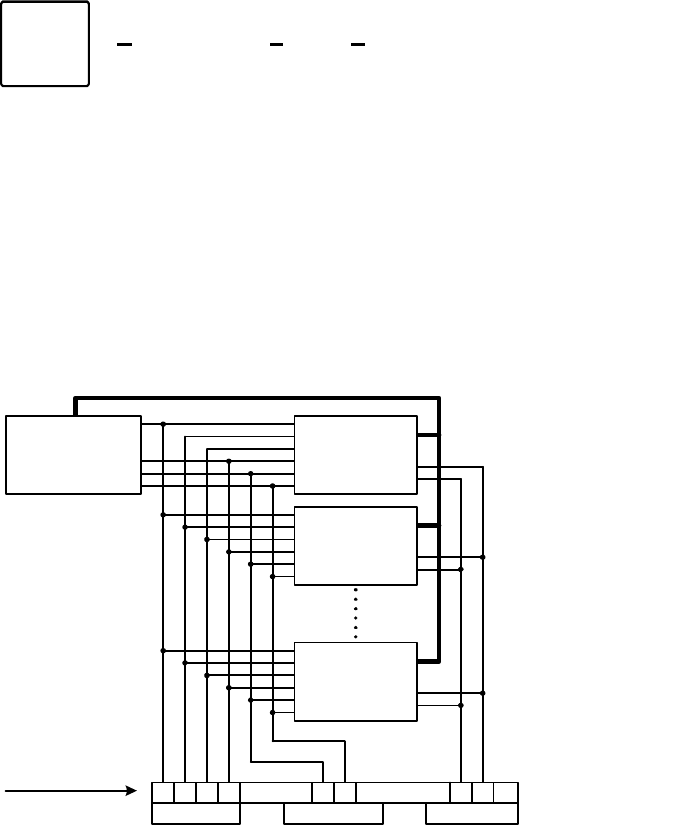

Fig.: Diagram in principle of the PROTECT 1.M
