Specifications
*Other Infiniium instruments in compliance with the Autoprobe interface can be added
using the Probe dialog box located in the Infiniium graphical user interface.

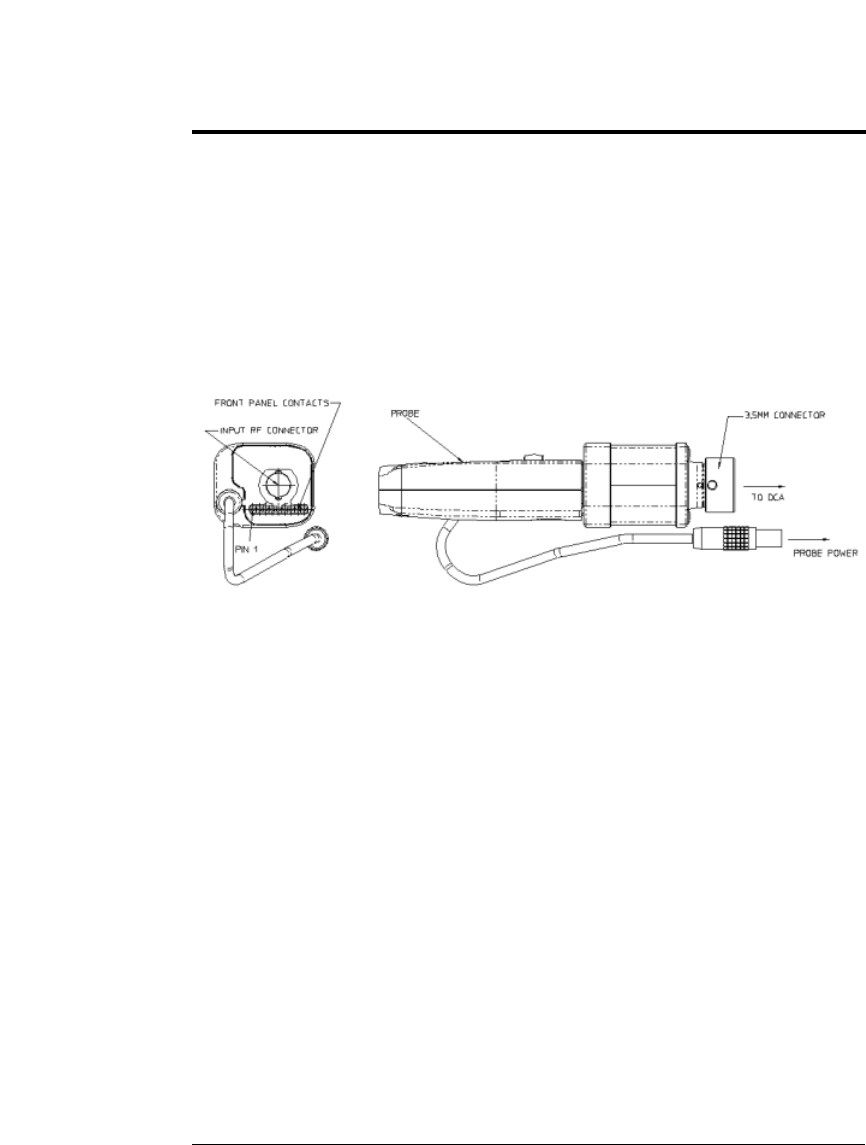

Figure 3. N1022A I/O Connections
Connector I/O (see figure below)
DCA Connector
Probe Connector
Power Connector
Custom ruggedized 3.5 mm connector
Precision BNC connector
Lemo push-pull 7-pin circular connector (works
only with probe power)
System Compatibility Compatible with Agilent 86100-series Infiniium
DCA
Table 3. Performance Specifications (2 of 2)
