1-16 Chapter 1: Product Introduction
2. PS2/USB Device Wake-up (3-pin PS2USBPW)
This jumper allows you to enable or disable the USB/PS2 keyboard or mouse
wake-up feature. Set this jumper to +5V to wake up the computer from S1
sleep mode (CPU stopped, DRAM refreshed, system running in low power
mode) using the connected keyboard, mouse or USB devices. Set this jumper
to pins 2-3 (+5VSB) to wake up from S3 and S4 sleep modes (no power to
CPU, DRAM in slow refresh, power supply in reduced power mode).
A7N8X-XE
PS2USBPW

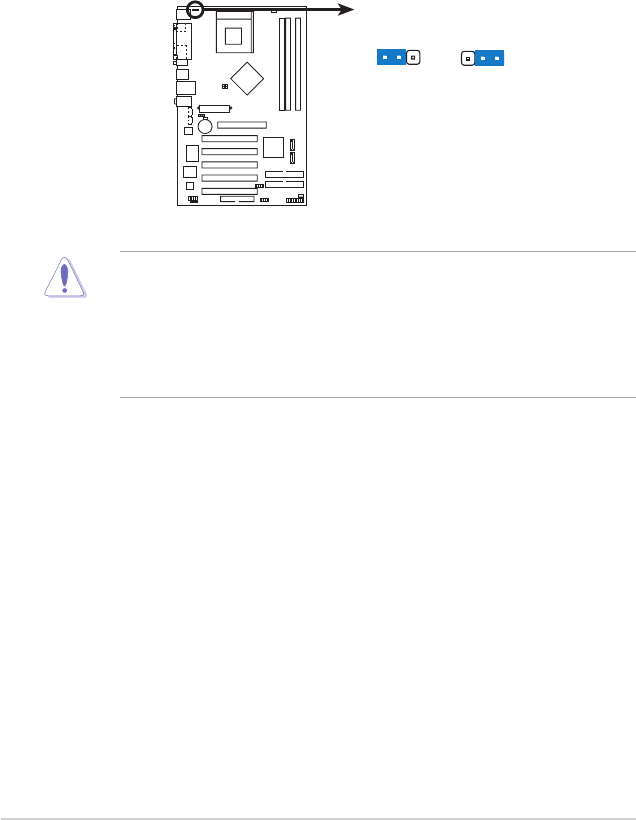

A7N8X-XE PS2/USB Device Wake-up
+5V +5VSB
(Default)
1 2 2 3
1. This device wake-up feature requires a power supply that can provide
500mA on the +5VSB lead for each USB, keyboard and mouse
devices, otherwise, the system will not power up.
2. The total current consumed must NOT exceed the power supply
capability (+5VSB) whether under normal condition or in sleep
mode.
