ASUS H87M-PRO
2-13
Chapter 2
2.3 Motherboard rear and audio connections

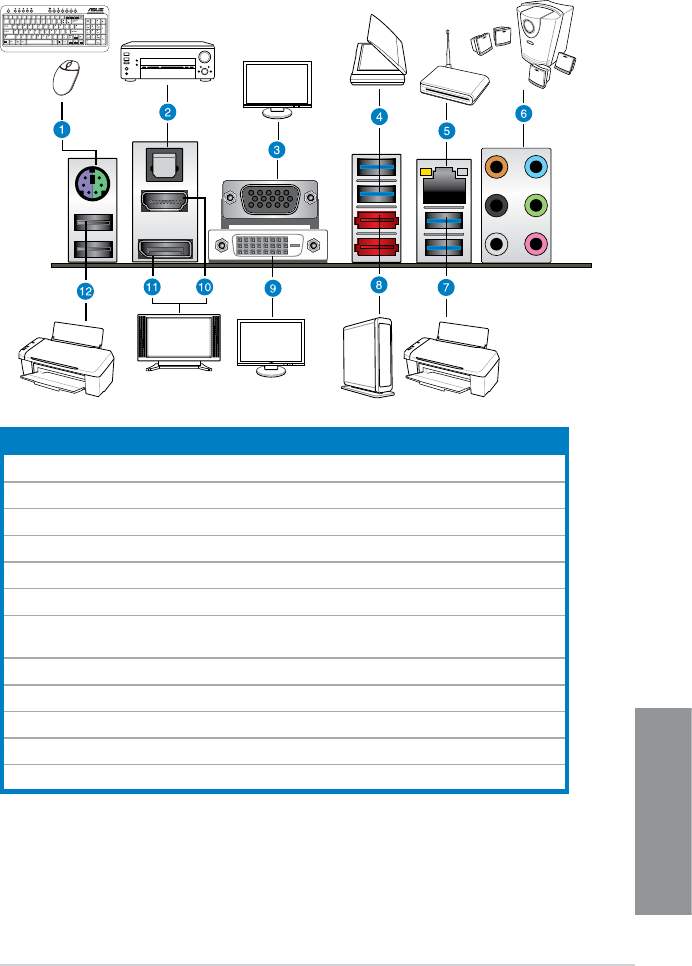

2.3.1 Rear I/O connection
* and ** : Refer to the tables on the next page for LAN port LEDs, and audio port denitions.
Rear panel connectors
1. PS/2 Keyboard/Mouse combo port
2. Optical S/PDIF OUT port
3. Video Graphics Adapter (VGA) port
4. Intel USB 3.0 ports, support ASUS USB 3.0 Boost.
5. LAN (RJ-45) port*
6. Audio I/O ports**
7. Intel USB 3.0 ports support ASUS USB 3.0 Boost. Bottom port supports USB
BIOS Flashback.
8. External SATA 6.0 Gb/s ports
9. DVI-D port
10. HDMI port
11. DisplayPort
12. USB 2.0 ports
