2-30
P4P800 SE
®

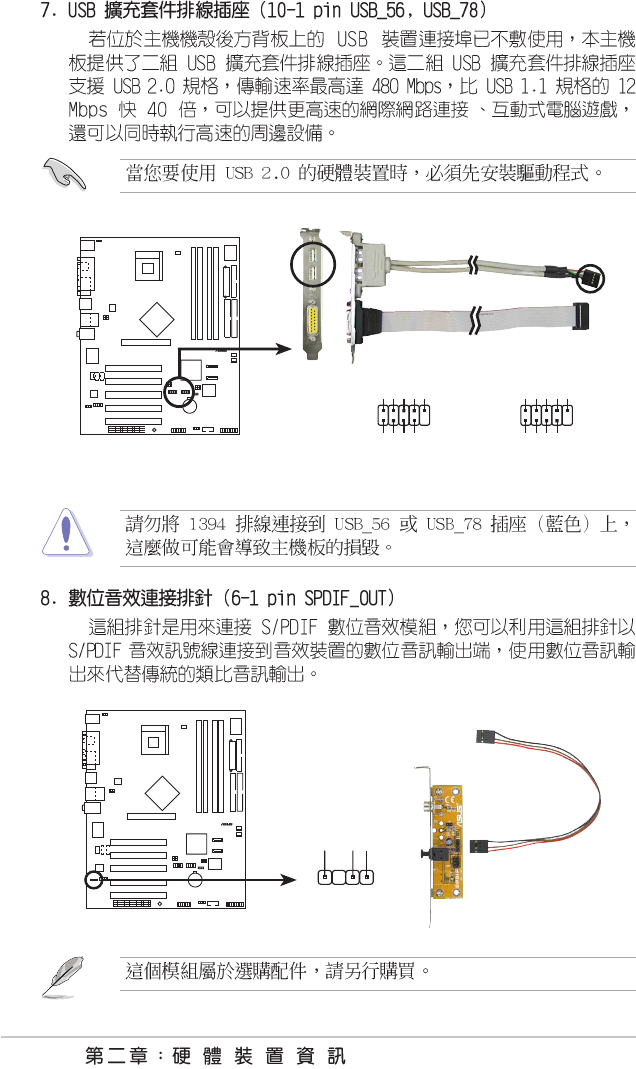

P4P800 SE USB 2.0 Header
USB56
USB+5V
USB_P6-
USB_P6+
GND
NC
USB+5V
USB_P5-
USB_P5+
GND
1
USB78
USB+5V
USB_P8-
USB_P8+
GND
NC
USB+5V
USB_P7-
USB_P7+
GND
1
P4P800 SE
®
P4P800 SE Digital Audio Connector
+5V
SPDIFOUT
GND
SPDIF_OUT
