P4P800 SE
®

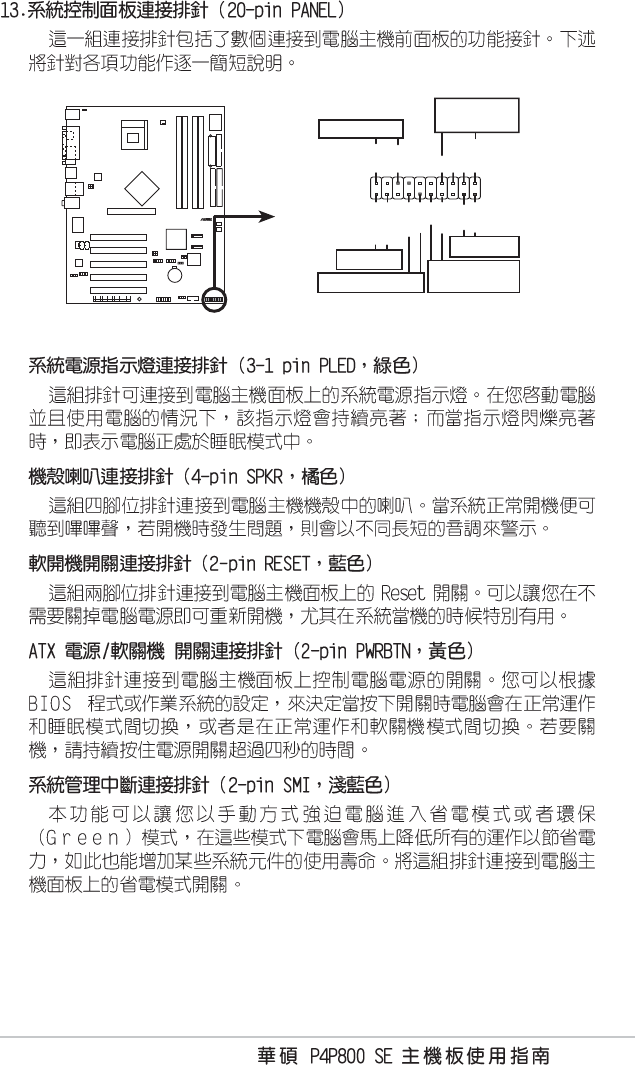

P4P800 SE System Panel Connectors
* Requires an ATX power supply.
PLED-
Ground
PWR
+5V
Speaker
Speaker
Connector
Power LED
Ground
Reset SW
SMI Lead
ExtSMI#
Ground
Reset
Ground
Ground
ATX Power
Switch*
PLED+
IDE_LED-
IDE_LED+
IDE_LED
•
•
•
•
•
