P4P800 SE
®

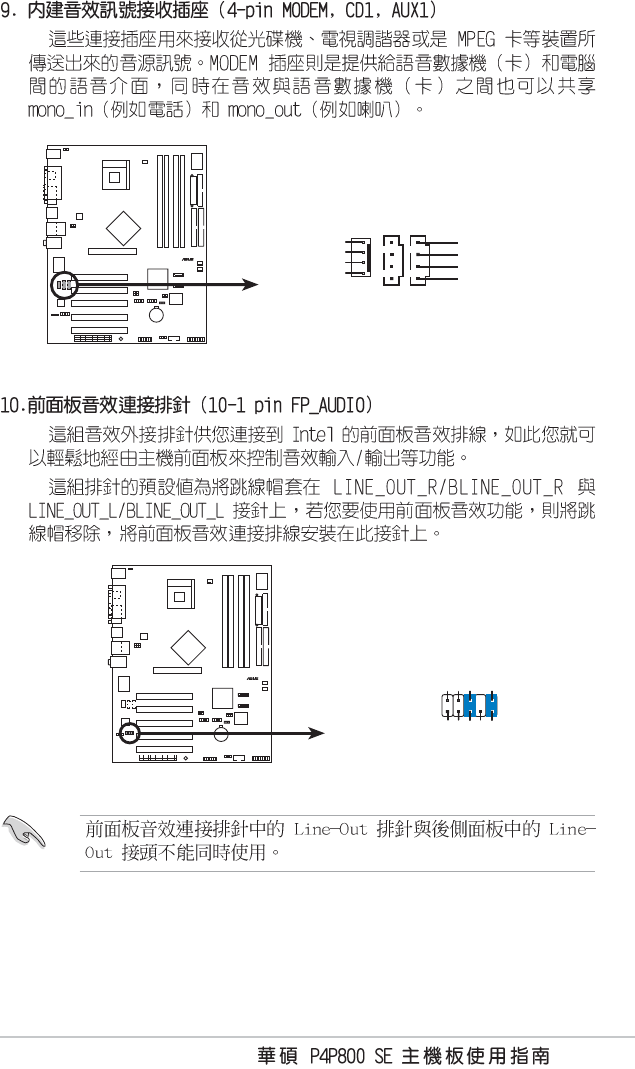

P4P800 SE Internal Audio Connectors
CD1(Black) AUX1(White)
Right Audio Channel
Left Audio Channel
Ground
Ground
MODEM
Modem-In
Ground
Modem-Out
Ground
P4P800 SE
®
P4P800 SE Front Panel Audio Connector
FP_AUDIO
BLINE_OUT_L
MIC2
Line out_R
Line out_L
BLINE_OUT_R
NC
MICPWR
+5VA
AGND
