Asus P5ND2 SE Computer Hardware User Manual



1-8 Chapter 1: Product introduction

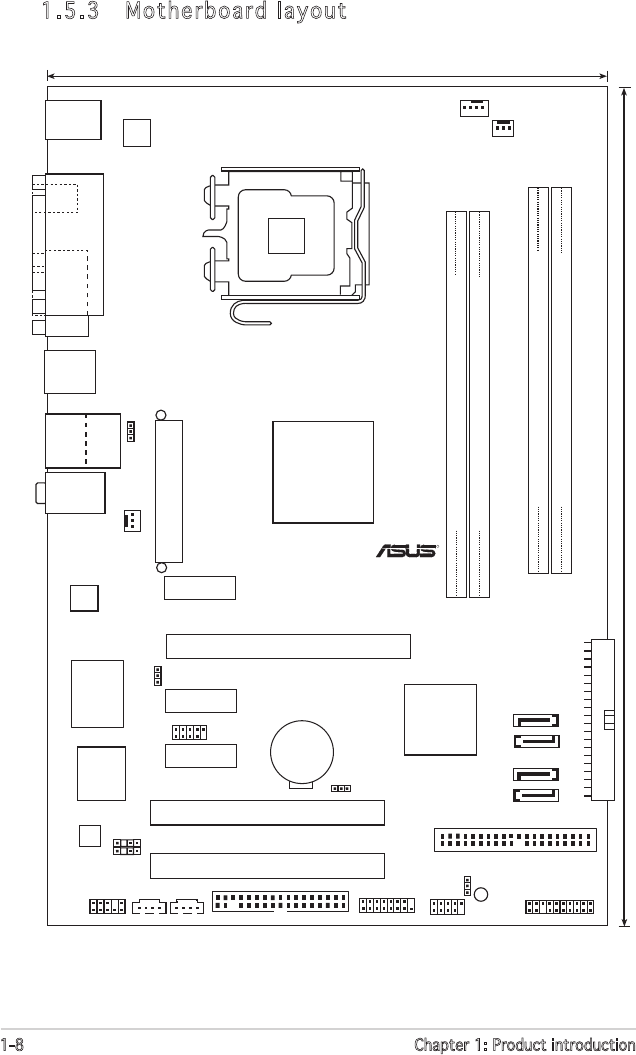

1.5.3 Motherboard layout
LGA775
DDR2 DIMM_A1 (128 bit,240‑pin module)
DDR2 DIMM_A2 (128 bit,240‑pin module)
DDR2 DIMM_B1 (128 bit,240‑pin module)
DDR2 DIMM_B2 (128 bit,240‑pin module)
PCI1
PCI2
PCIEX16
PCIEX1_1
PCIEX1_2
PCIEX1_3
CR2032 3V
Lithium Cell
CMOS Power
4Mb
BIOS
Super I/O
SEC_IDE
PRI_IDE
nVIDIA
Crush19
Ultra
MCP51
SATA1
SATA2
SATA3
SATA4
AD1986A
RTL8111B
EATXPWR
PWR_FAN
CPU_FAN
ATX12V
CHA_FAN
P5ND2 SE
R
PANEL
USB56
FLOPPY
SB_PWR
AAFP
CD AUX
SPDIF_OUT
CHASSIS
USB78
CLRTC
USBPW1234
USBPW78
USBPW56
GAME
USB12
Below:Mic In
Center:Line Out
Top:Line In
PS/2KBMS
T: Mouse
B: Keyboard
COM1
PARALLEL PORT
RJ‑45
Top:
USB3
USB4
Bottom:
SPDIF_O1
30.5cm (12.0in)
19.6cm (8.0in)
