ASUS P5ND2 SE 1-29

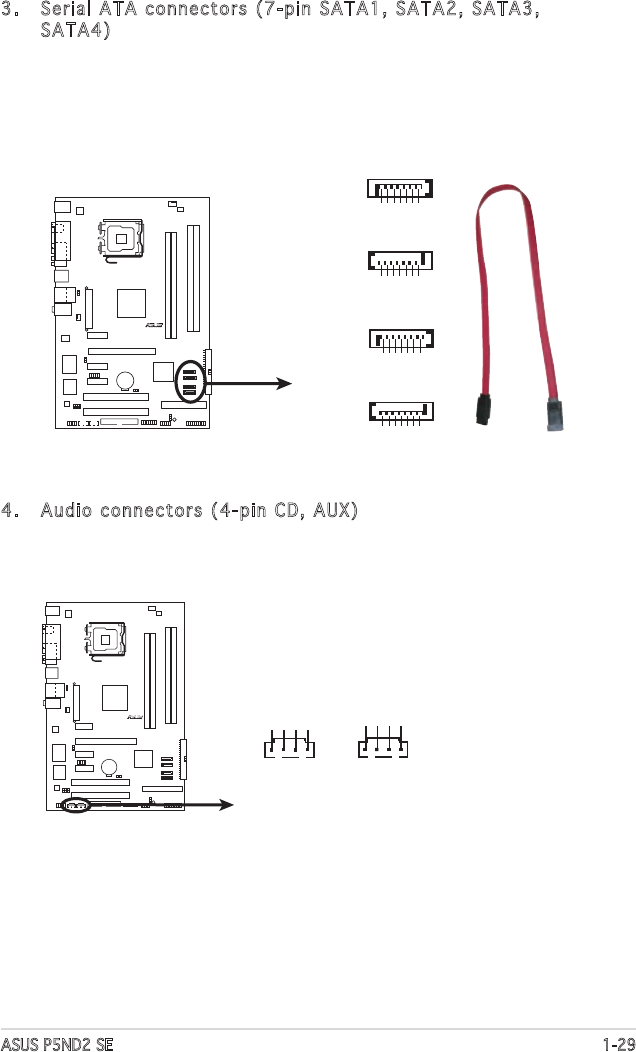

3. Serial ATA connectors (7-pin SATA1, SATA2, SATA3,
SATA4)
These connectors are for the Serial ATA signal cables for Serial ATA
hard disk devices. The current Serial ATA I interface allows up to 150
MB/s data transfer rate while Serial ATA II allows up to 300 MB/s data
transfer rate, faster than the standard parallel ATA with 133 MB/s
(DMA/133).
4. Audio connectors (4-pin CD, AUX)
These connectors allow you to receive stereo audio input from sound
sources such as a CD-ROM, TV-tuner, or MPEG card.
P5ND2 SE
R
P5ND2 SE SATA Connectors
SATA3
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXP3
RSATA_RXN3
GND
SATA4
GND
GND
GND
RSATA_RXN4
RSATA_TXN4
RSATA_TXN4
RSATA_RXP4
SATA2
GND
GND
GND
RSATA_RXN2
RSATA_TXN2
RSATA_TXN2
RSATA_RXP2
SATA1
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
R
SATA_RXN1
GND
P5ND2 SE
R
P5ND2 SE Internal Audio Connectors
AUX
(White)
Right Audio Channel
Left Audio Channel
Ground
Ground
CD
(black)
Right Audio Channel
Left Audio Channel
Ground
Ground
