3. Connect the CPU fan cable to the connector on the motherboard
labeled CPU_FAN.

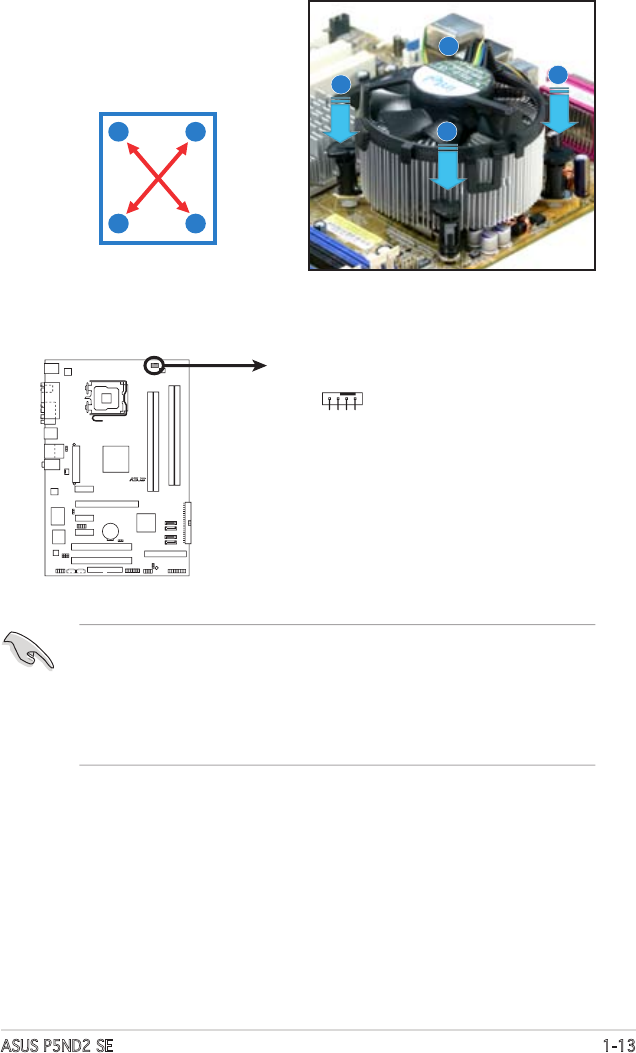

2. Push down two fasteners at
a time in a diagonal sequence
to secure the heatsink and fan
assembly in place.
B
B
A
A
A
A
B
B
Do not forget to connect the CPU fan connector! Hardware
monitoring errors can occur if you fail to plug this connector.
The retention module of some third-party CPU heatsink and fan
can interfere with chipset components at the bottom of the board.
Before purchasing a separate CPU heatsink and fan, make sure that
it will not interfere with the chipset components.
P5ND2 SE
R
P5ND2 SE
CPU Fan Connector
CPU_FAN
GND
CPU FAN PWR
CPU FAN IN
CPU FAN PWM
