ASUS P5VDC-X
• The USB device wake-up feature requires a power supply that can
provide 500 mA on the +5VSB lead for each USB port; otherwise,
the system would not power up.
• The total current consumed must NOT exceed the power supply
capability (+5VSB) whether under normal condition or in sleep mode.
2. USB device wake-up (3-pin USBPW12, USBPW34, USBPW56,
USBPW78)
Set these jumpers to +5V to wake up the computer from S1 sleep
mode (CPU stopped, DRAM refreshed, system running in low power
mode) using the connected USB devices. Set to +5VSB to wake up
from S3 and S4 sleep modes (no power to CPU, DRAM in slow refresh,
power supply in reduced power mode).
The USBPW12 and USBPW34 jumpers are for the rear USB ports. The
USBPW56 and USBPW78 jumpers are for the internal USB connectors
that you can connect to additional USB ports.
Below:Mic In
Center:Line Out
To
p:Line In
P5VDC-X
R
USBPW56
USBPW78
(Default)
+5V
+5VSB
3
2
2
1
+5V
(Default)
+5VSB
USBPW12
USBPW34
1 2
2 3

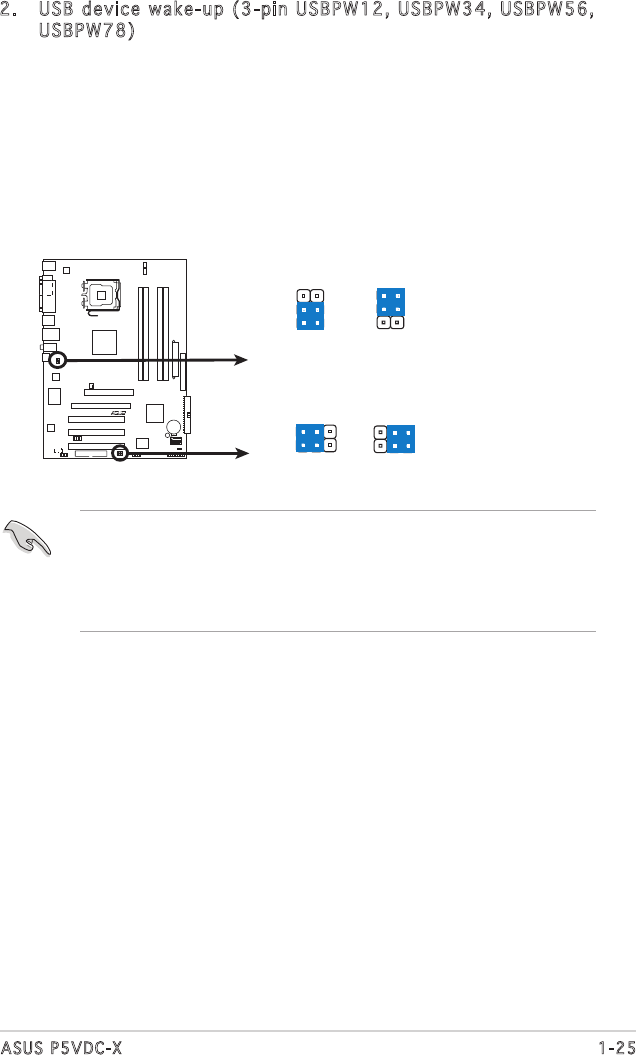

P5VDC-X USB device Wake up
