1. Installation process
Image 1-1

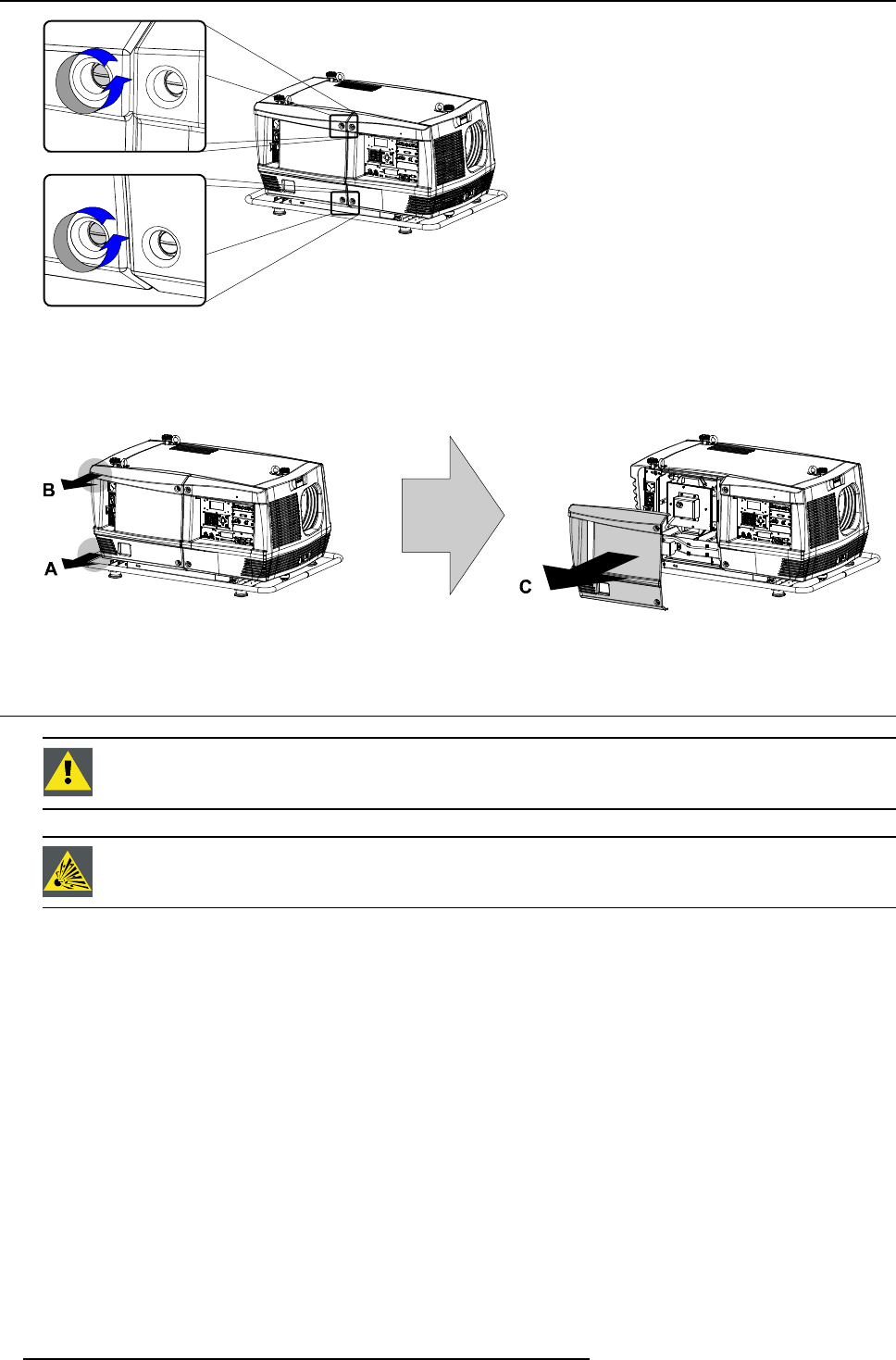

2. Remove the lamp c over from the projector doing the following:
a) gently pull out the left bottom corner (A) of the lamp cover,
b) then gently pull out the left top corner (B) of the lamp cover,
c) then move the lamp cover away from the projector (C).
Image 1-2
1.3 Removal of the lamp house
WARNING: This procedure may only be performed by qualified technical service personn el.
CAUTION: Never attempt to disassemble the lamp from its housing or to dispose of it. Return it to Barco.
Due to its high internal pressure, the lamp ma y explode in either hot or cold states if improperly handled.
Necessary tools
7mmflat screw driver.
How to remove the lamp house of the projector ?
1. Switch off the projector and unplug the power cord at the projec tor side.
2. Remove the lamp cover, see "Removal of the lamp cover", page 1 .
3. Release the three spring lock screws of the lamp house as illustrated.
2
R5976922 FLM LAMP HOUSE 18/11/2008
