Remote Mode
Performing Remote Control of the projector
The connection of the Rugged Remote Control to a projector uses a standard twisted pair cable
with XLR connectors at each extremity (not supplied).
The baudrate is fixed at 57600 baud.

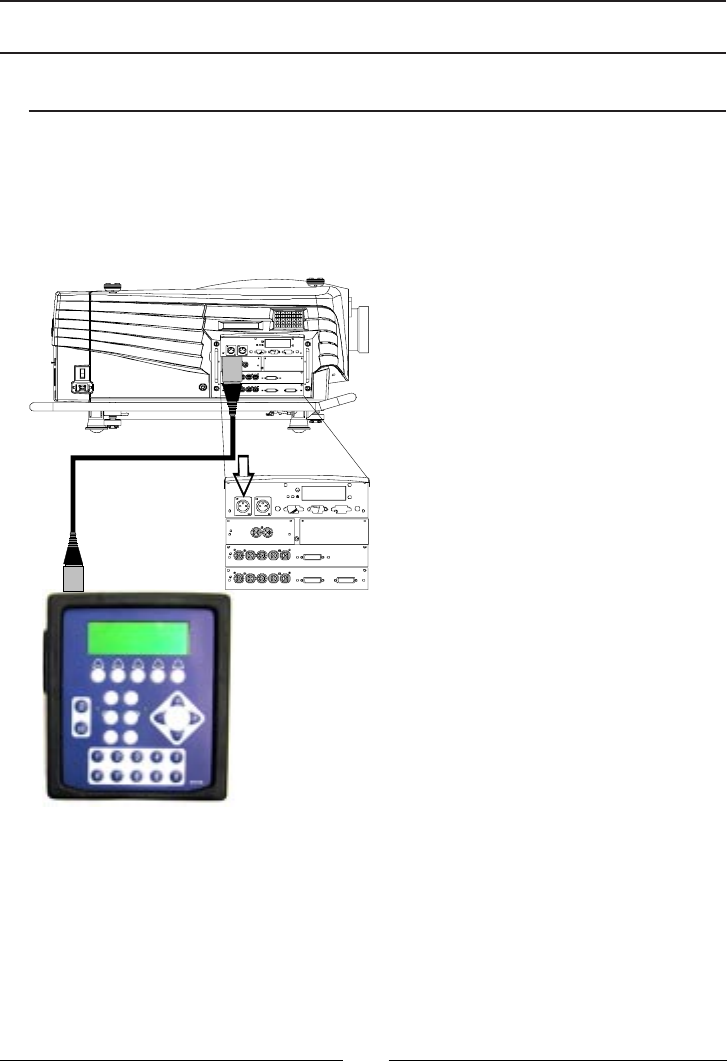

Image 1 gives an example of a Remote Control connected to a G5 SLM Projector.
How to Connect
1. Plug the cable in the Remote connector labeled CTRL3 "Two way hardwired remote".
2. Plug the other extremity in the projector connector with the same label.
Remark: In case of a 6000 series LCD projector XLR remote control is not implemeted.
Refer to "RS232RS422 communication" (page 20) to control the projector.
