16.1 Static Routing Configuration

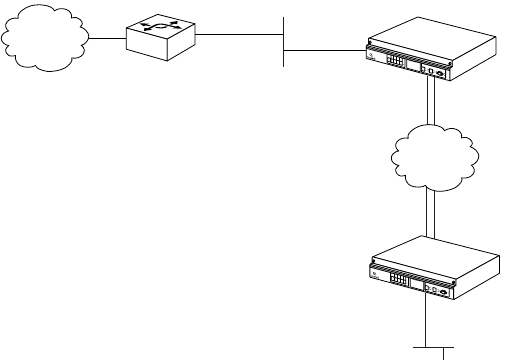

All Black Box systems support IP routing utilizing static routes. The following diagram shows a remote Black Box “A”
connected over an MLPPP bundle to the main Black Box “B”. Black Box B in turn routes to the customer router.
Figure 32 IP Routing
The customer router Ethernet 0 IP address is 200.1.1.1 255.255.255.0, and the IP route is 198.1.1.0 255.255.255.0
200.1.1.2 2.
