OHM720, OHM820
10. DOME LIGHT WIRING
Negative Trigger Door Switch Positive Trigger Door Switch
Brown: + 12V Brown: Ground
Gray: Ground Gray: + 12V
White: Door Switch White: Door Switch
11. DOME LIGHT ON/OFF SWITCH DESCRIPTION
A three-position slide switch controls the lights integrated into the OHM720/
OHM820. Sliding the switch to the ON position will turn the lights on. The
OFF position will prevent the lights from turning on at all times, and the auto
position will allow the lights to turn on and off with the vehicle interior lighting.
Do not leave the vehicle unattended with the dome light switch in the ON
position, as this could result in a discharged battery.

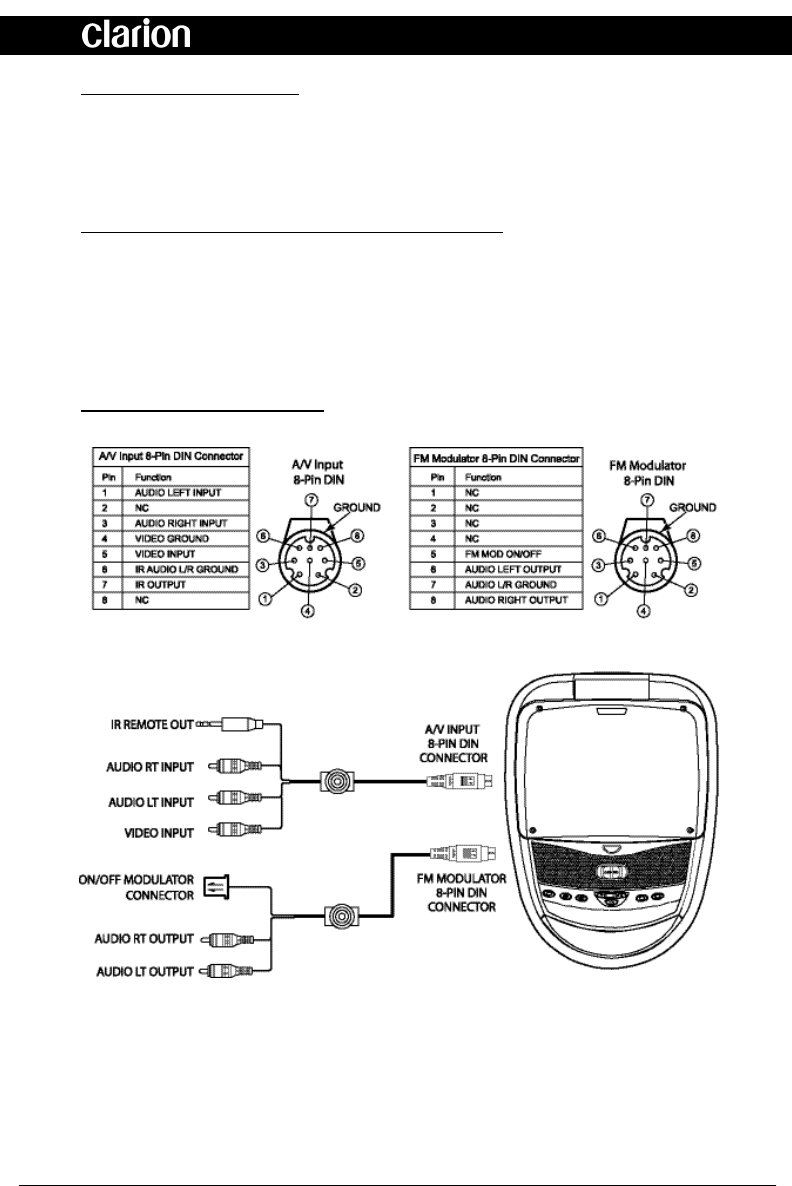

12. DIN CABLE PIN LAYOUT
7
