DFE-500TX Ethernet PC Card User's Guide
14
5. Remove the DFE-500TX Software Diskette from your station's (the
primary station's) diskette drive, and insert it into an available drive of a
second station on your LAN. At the DOS prompt (here shown as >), key
in:
> A: \DIAG\DIAG500.EXE
and <RETURN>. The opening screen of the Verification/Diagnostic
program will appear onscreen at the second station. Key <RETURN> to
bring up the Configuration Data and Diagnostic Menu onscreen at the
second station. Follow the cues at the foot of the screen to select and run
the Network Diagnostic program at the second station. The second station
then begins broadcasting test packets, and at the same time is also ready to
receive and return test signals transmitted from the primary station’s
newly installed DFE-500TX.

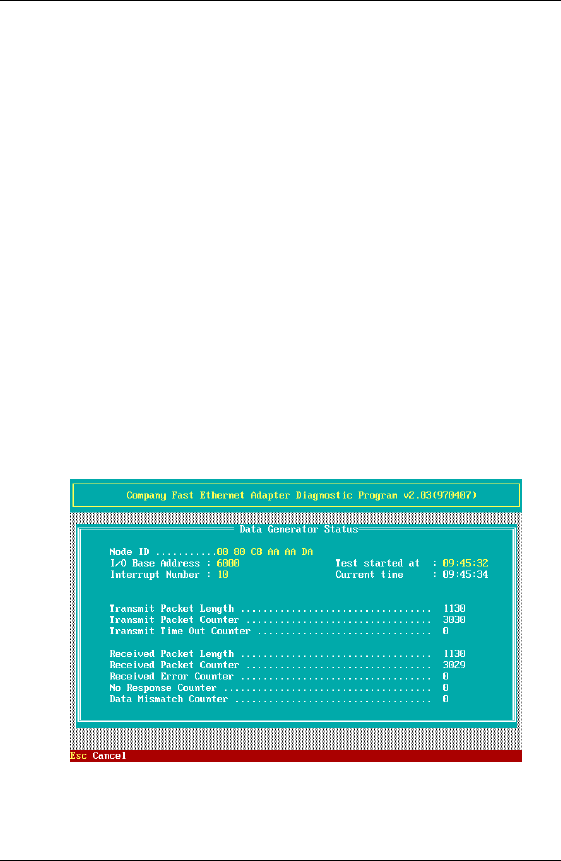

7. Return to the primary station and follow the cues at the foot of the screen
to select and run the Network Diagnostic program. Observe the “Packets
Transmitted” and “Packets Received” lines to see that they track together
(always show equal count numbers), which verifies normal network
operation.
Hiya, Normal!
Hiya, Heading 1!
Hiya, Heading 2!
Most likely causes of failure in any of the verification/diagnostic tests are
incorrect option settings, option settings that conflict with the settings of
