41D-Link DAP-2360 User Manual
Section 3 - Conguration

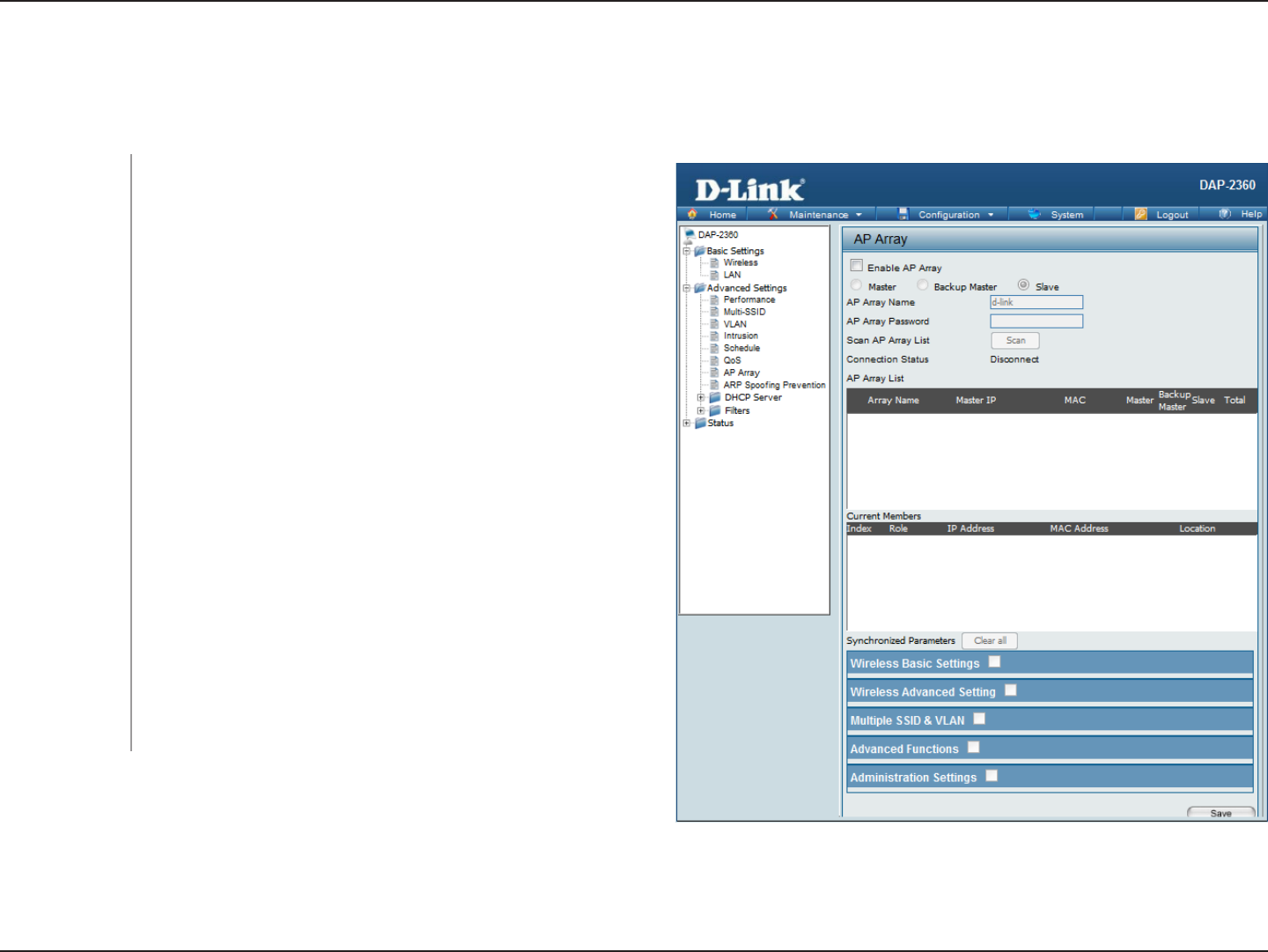

AP Array
An AP array is a set of devices on a network that are organized into a single group to increase ease of management.
This check box allows the user to enable the AP array
function. The three modes that are available are Master,
Backup Master, and Slave. APs in the same array will
use the same conguration. The conguration will sync
the Master AP to the Slave AP and the Backup Master
AP when a Slave AP and a Backup Master AP join the
AP array.
Enter a name for the AP array you have created.
Enter a password that will be used to access the AP
array you have created.
Click this button to initiate a scan of all the available
APs currently on the network.
This table displays the current AP array status for the
following parameters: Array Name, Master IP, MAC,
Master, Backup Master, Slave, and Total.
This table displays all the current array members. The
DAP-2360 AP array feature supports up to eight AP
array members.
Enable Array:
AP Array Name:
AP Array
Password:
Scan AP Array
List:
AP Array List:
Current Array
Members:
