Fast Ethernet Switching System User’s Guide
Managing the DES-5024
68
Create New VLAN
The Create New VLAN menu, displayed in Figure 37, is used to create a new VLAN.
The default value is that all ports belong to one VLAN. You can create up to eight
separate VLANs. Ports can belong to two VLANs at the same time. Each VLAN is a
broadcast domain. If you have created a trunking group, you must include the entire trunk
group in the VLAN.

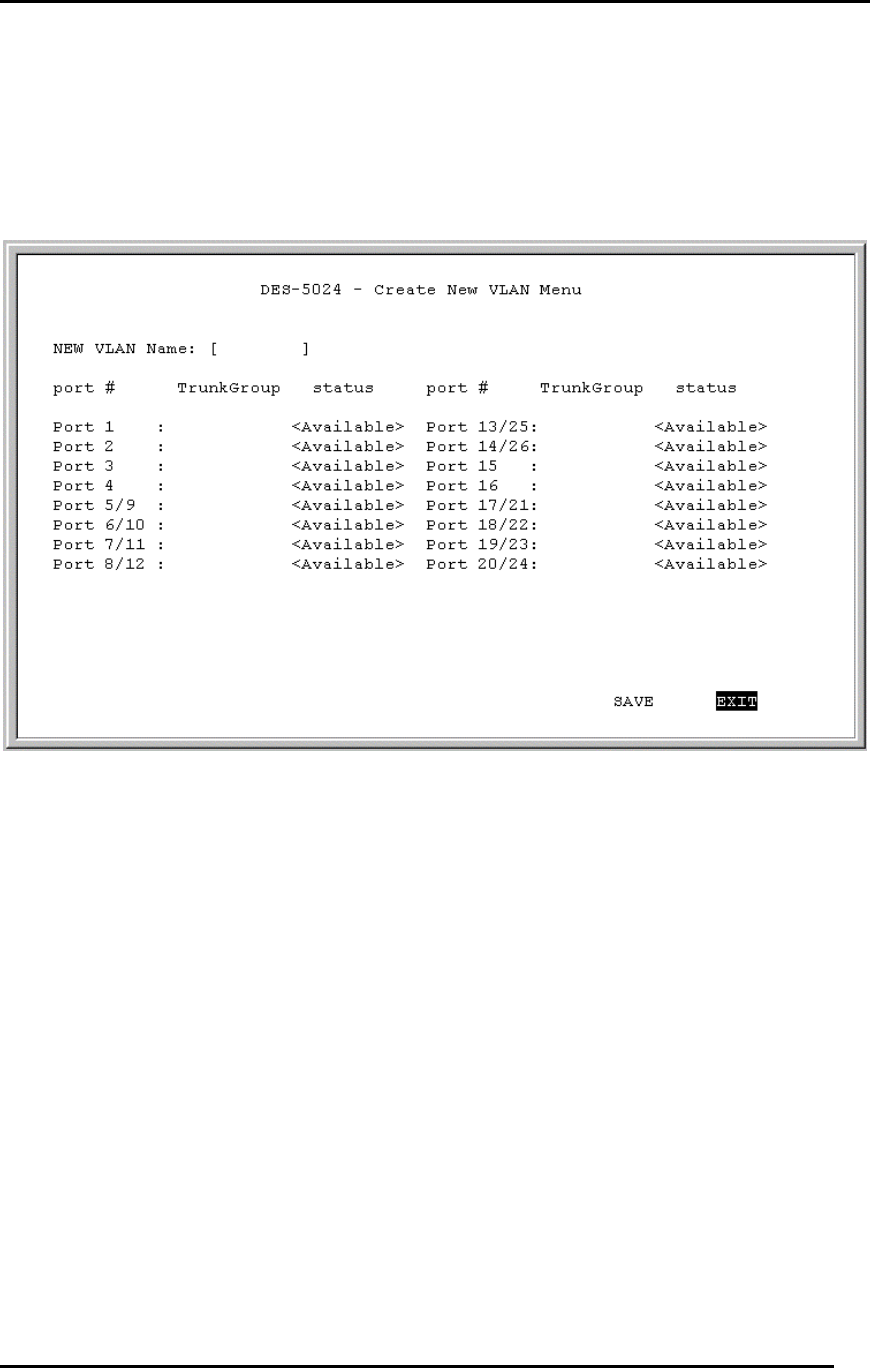

Figure 37: Create New VLAN menu
New VLAN Name
Is the name of the VLAN you are creating. All VLANs must have a unique name.
Port #
Is the number of the port. The numbers on the panel match the ports on the DES-5024.
Some ports are combined. For example, ports 5 and 9 are shown as “Port 5/9”. Ports that
are grouped together must be part of the same VLAN.
TrunkGroup
This field identifies the trunk group that the port has been assigned to. The field is open if
the port has not been assigned to a Trunk Group.
Status
The status field can be either available or selected. Available indicates that the port is
available for inclusion in a VLAN. Selected indicates the port has been assigned to a
