45D-Link DWR-921 User Manual
Section 3 - Conguration
RIP SETTING
Check the box to enable routing, then select which routing
protocol to use:
• RIPv1: Protocol in which the IP address is routed
through the internet.
• RIPv2: Enhanced version of RIPv1 with added
features such as authentication, routing domain,
next hop forwarding, and subnet-mask exchange.

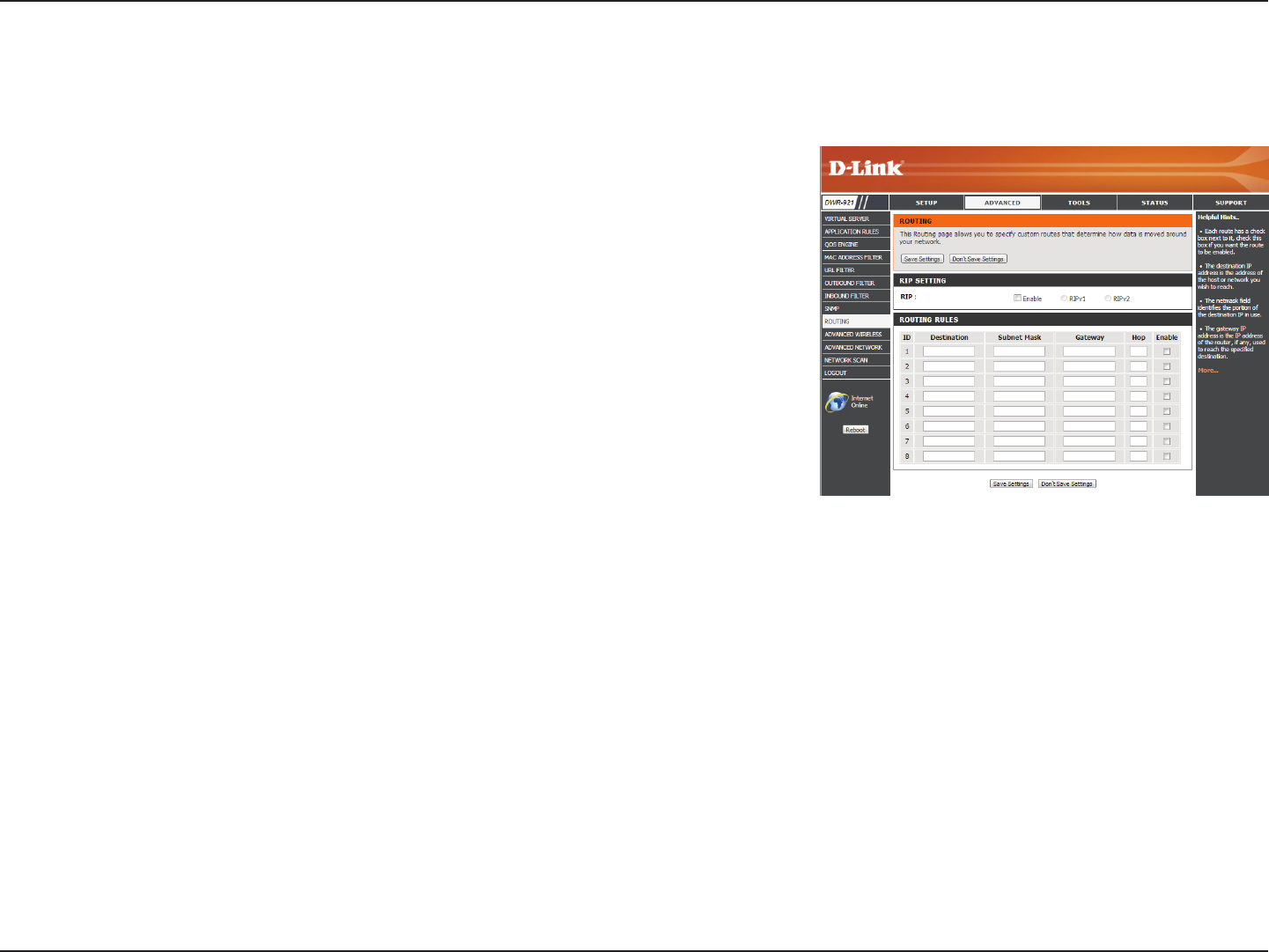

Routing
RIP:
The Routing page allows you to specify custom routes that determine how data is moved around your network. After modifying any settings, click
Save Settings to save your changes.
ROUTING RULES
This identies the rule.
Enter in the IP of the specied network that you want to access
using the static route.
Enter in the subnet mask to be used for the specied network.
Enter in the gateway IP address for the specied network.
Enter in the amount of hops it will take to reach the specied
network.
Note: In a transmission path, each link is terminated at a
network device such as a router or gateway. The number of
hops equals the number of routers or gateways that data must
pass through before reaching the destination.
Select this box to enable the rule.
ID:
Destination:
Subnet Mask:
Gateway:
Hop:
Enable:
