Product Data Document
420DS-1k
July 16, 2007 - Page 4
Bristol
®
ControlWave
®
PAC
Remote Automation Solutions
Website: www.EmersonProcess.com/Remote
wire transmitters and dry contacts. For maximum
channel-to-channel isolation, externally powered
analog and digital inputs may be selected.
Status-at-a-glance indicators offer instant visual
notication of I/O system problems. Each I/O
module has a bi-color Pass/Fail LED to display the
on-line diagnostic status. Digital I/O status LED’s
are provided for each point. Analog Input modules
have a unique feature. Each input point has two
LEDs to indicate input under/over range conditions
due to open and shorted eld devices. The green
LED, when lit, indicates the input is in a normal
range. The Red LED, when lit, indicates the input is
under or over range, typically meaning it is open or
shorted.

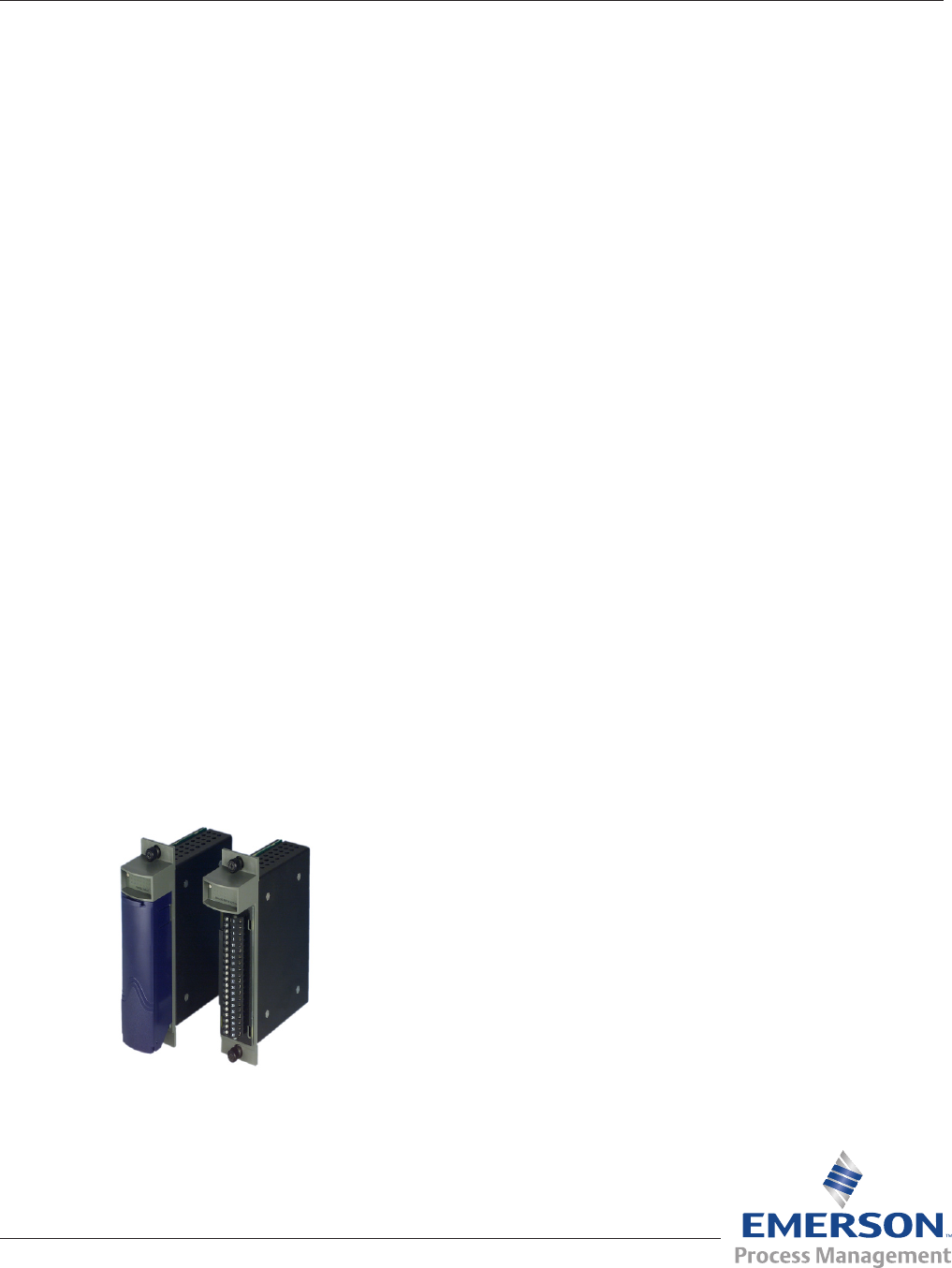

Features
Convenient ‘Process Friendly’ pluggable
local and remote wiring terminations simplify
installation
Status-at-a-glance LED indicators
Single and Double density I/O count available
for all modules provide application exibility
Loop powered inputs minimize wiring costs
Easy access pull-down door with terminal wiring
labels
Hot Swap I/O replacement
All I/O modules are enclosed in a rugged
aluminum shell
Analog outputs congurable for ‘Hold last value,
•
•
•
•
•
•
•
•
Fail-Safe state or preset value’
Discrete outputs congurable ‘Hold last value or
fail to zero’
Specications
All I/O
Surge protection meets C37.90-1978 and
IEC 801-5
Terminations are pluggable and accept a
maximum wire size of 14 gauge
‘HOT SWAP’ module replacement is supported.
All I/O is frozen for 300 ms when any module is
replaced
Environmental Specications
Operating Temperature range: -40 to 70
o
C
(-40 to 158
o
F), storage up to 85
o
C
Relative Humidity: 15-95% non-condensing
Vibration: 1.0g for 10-150 Hz, 0.5g for 150Hz to
2000Hz
RFI Susceptibility: 3V/m – 80 MHz to 1000Mhz
(EN50082-2)
ControlWave Digital Input Module
Number of points: 16 or 32 – non-interrupting
inputs
16-bit wide bus access
Input Voltage Range: 24 Vdc nominal
Input current : 5 mA nominal
Optical isolation: 1500 V eld input to logic
Surge suppression: 500Vdc MOV to chassis
31 Vdc transorb between signal and isolated
ground
Input ltering: 30 ms time constant (contact
bounce)
Dry contact or externally powered voltage
inputs – 21 Vdc on-board isolated loop power
•
•
•
•
•
•
•
•
•
•
•
•
•
