.406"
(10.3 mm)
1"
(25.4 mm)
.5"
(12.7 mm)
Center-line
TOP
2.5"
(63.5 mm)
5"
(127 mm)
7"
(178 mm)
8"
(203 mm)

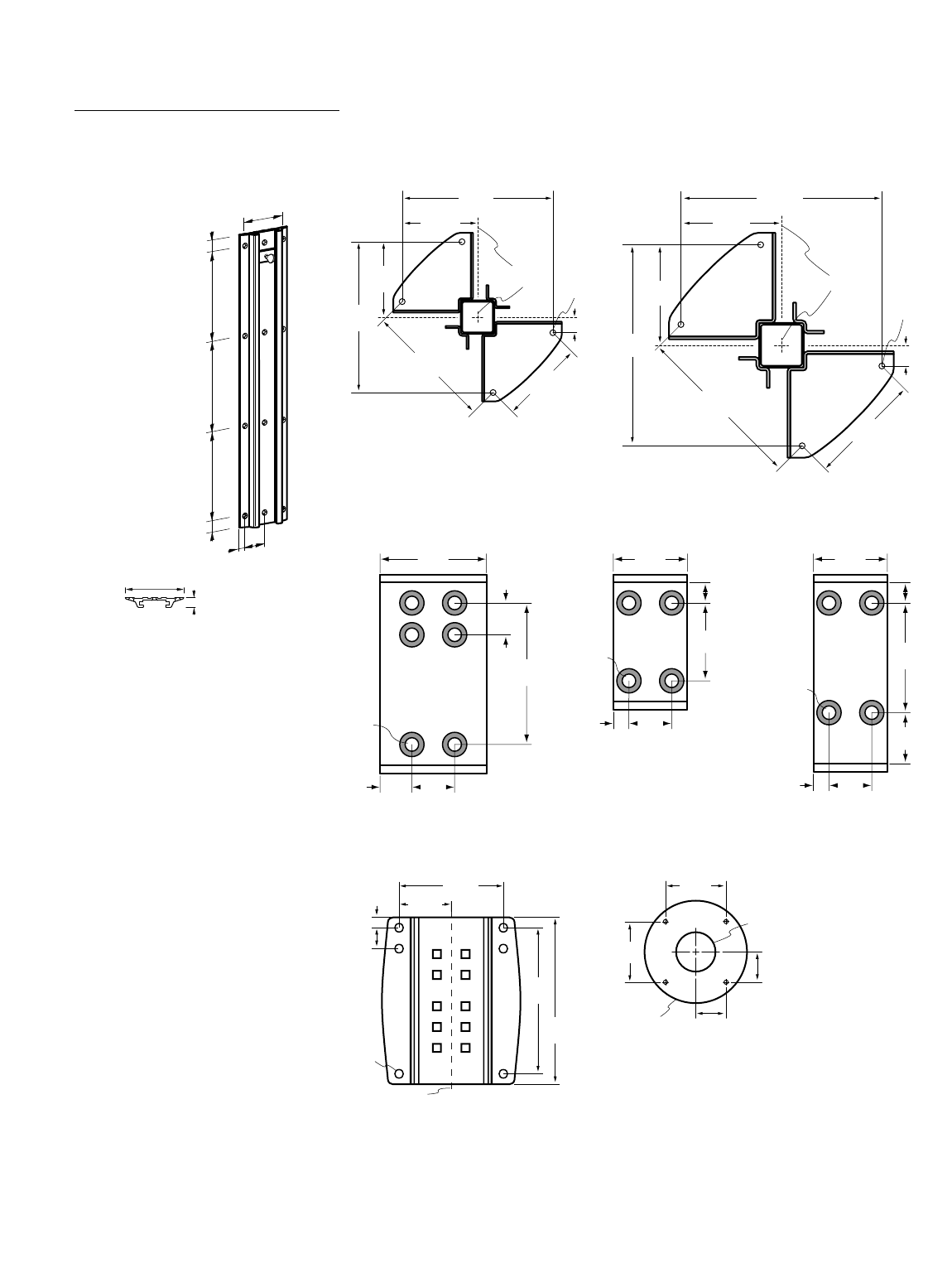

Wall Mount Bracket
Hole Pattern
13-3/8"
(340 mm)
6-11/16"
(169 mm)
ø 9/16"
(14 mm)
Center
lines
11-13/32"
(289 mm)
7-1/2"
(191 mm)
1-3/8"
(35 mm)
13-3/8"
(340 mm)
6-11/16"
(169 mm)
3" x 3" Post Hole Pattern 4" x 4" Post Hole Pattern
8-9/32"
(210 mm)
ø 9/16"
(14 mm)
Center
lines
13-13/32"
(341 mm)
10"
(254 mm)
1-13/64"
(30.6 mm)
16-9/16"
(421 mm)
16-9/16"
(421 mm)
8-9/32"
(210 mm)
.87"
(22.1 mm)
5"
(127 mm)
8"
(203 mm)
8"
(203 mm)
8"
(203 mm)
4"
(102 mm)
2"
(50.8 mm)
.5"
(12.7 mm)
1"
(25.4 mm)
1"
(25.4 mm)
Wall Track Hole Pattern
Enclosure Interface
for N12 Arm
Ø 1.83"
(46.5 mm)
Ø 4.8"
(121.9 mm)
1.48"
(37.6 mm)
1.48"
(37.6 mm)
2.95"
(74.9 mm)
2.95"
(74.9 mm)
12", 6" and Fixed Arms
Hole Pattern
2.38"
(60.5 mm)
ø .42"
(10.7 mm)
.67"
(17 mm)
2.5"
(63.5 mm)
1.38"
(35.1 mm)
.5"
(12.7 mm)
16" and N12 Arms
Hole Pattern
2.38"
(60.5 mm)
ø .42"
(10.7 mm)
.67"
(17 mm)
3.5"
(88.9 mm)
1.61"
(40.9 mm)
1.38"
(35.1 mm)
.5"
(12.7 mm)
Extender Arms
Hole Pattern
3.25"
(82.6 mm)
ø .42"
(10.7 mm)
4.5"
(114.3 mm)
1"
(25.4 mm)
1.38"
(35.1 mm)
.94"
(23.9 mm)
