Introduction, cont’d
RGB 500 AKM and RGB 560 AKM Introduction1-2
Introduction
About the Interfaces
Extron’s RGB 500 AKM and RGB 560 AKM interfaces are universal, analog,
computer-video interfaces with 300 MHz (-3dB) video bandwidth. The interfaces
feature Extron’s ADSP™ (Advanced Digital Sync Processing™) to ensure stable
sync signal output, while allowing trouble-free centering control.

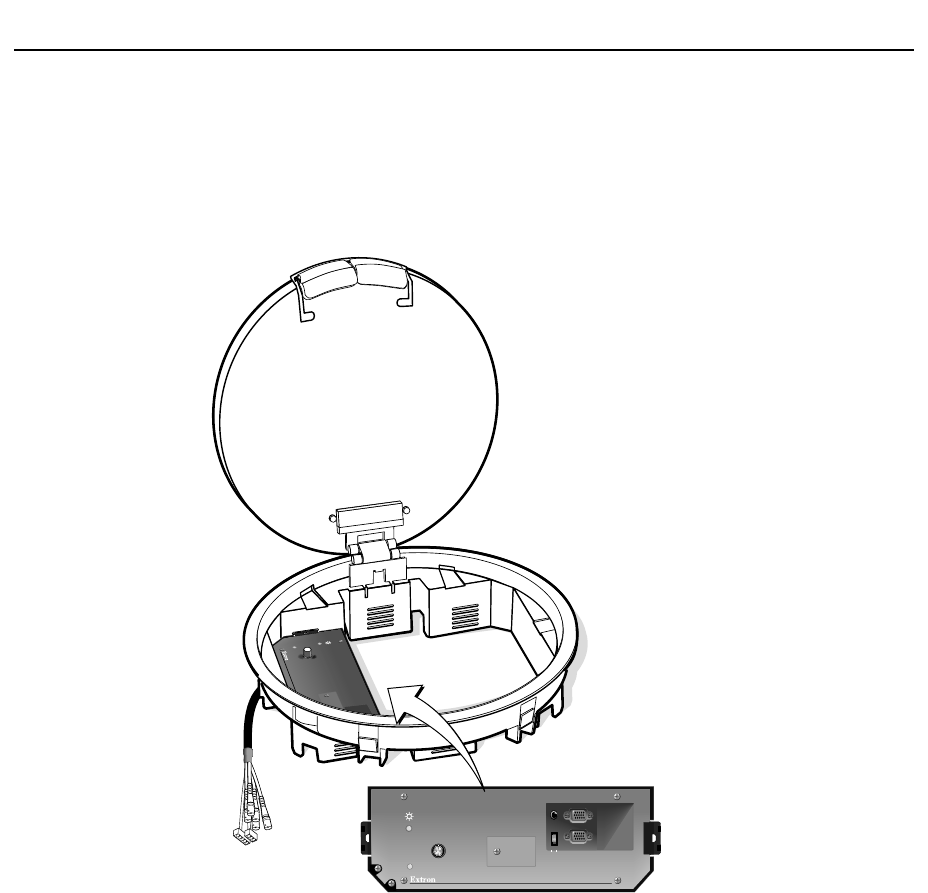

Up to three interfaces can be installed in an Ackermann floor tank.
Figure 1 — Interface components
Features
RGB 500 AKM and RGB 560 AKM features
Both interfaces provide the following features:
Digital sync processing — Using regular sync processing to allow centering
control (H-shift) can create problems with some digital display devices as a
result of the sync delay. Extron’s ADSP restores a stable sync signal, while
allowing centering control. The RGB 500 AKM and RGB 560 AKM
interfaces also provide another option, DDSP™ (Digital Display Sync
Processing™), to ensure proper displays without altering sync pulse
timing or width. It can be selected via a DIP switch.
Horizontal shift control — Adjust horizontal centering via a front panel knob.
RGBHV, RGBS, or RGsB outputs — Select the output format via DIP switches.
L
O
C
A
L
O
U
T
I
D
P
I
N
1
1
I
D
P
I
N
4
H
.
S
H
I
F
T
R
G
B
558 A
K
M
w
ith A
DS
P
T
M
M
IN
/M
A
X
RGB 560 AKM with ADSP
TM
BUFFERED
LOCAL OUT
MIN/MAX
H. SHIFT
AUDIO
ID PIN 4
ID PIN 11
INPUT
RGB 560 AKM
Ackermann Floor Tank
