Configuring the TLP 700MV (Initial Setup)
Before using the TLP 700MV, it is essential to configure it using the on-screen menus. There are five different screens (Main,
Volume, Time, Network, and Video) that can be selected by pressing the appropriate button at the left side of the screen.
There is also an Exit button at the bottom left corner of the screen for leaving the menus.
Setup Menu
1. Press the recessed Menu button to activate the top-level menu
screen. The menu opens at the Main Setup Page.
2. Touch an area of the screen to bring it into focus and use the
up and down buttons or the volume control knob to adjust the
value. Some options have a single button and toggle between Off
and On when the button is pressed.
Use the different menu pages to adjust the following options. For
more details, see the user guide.

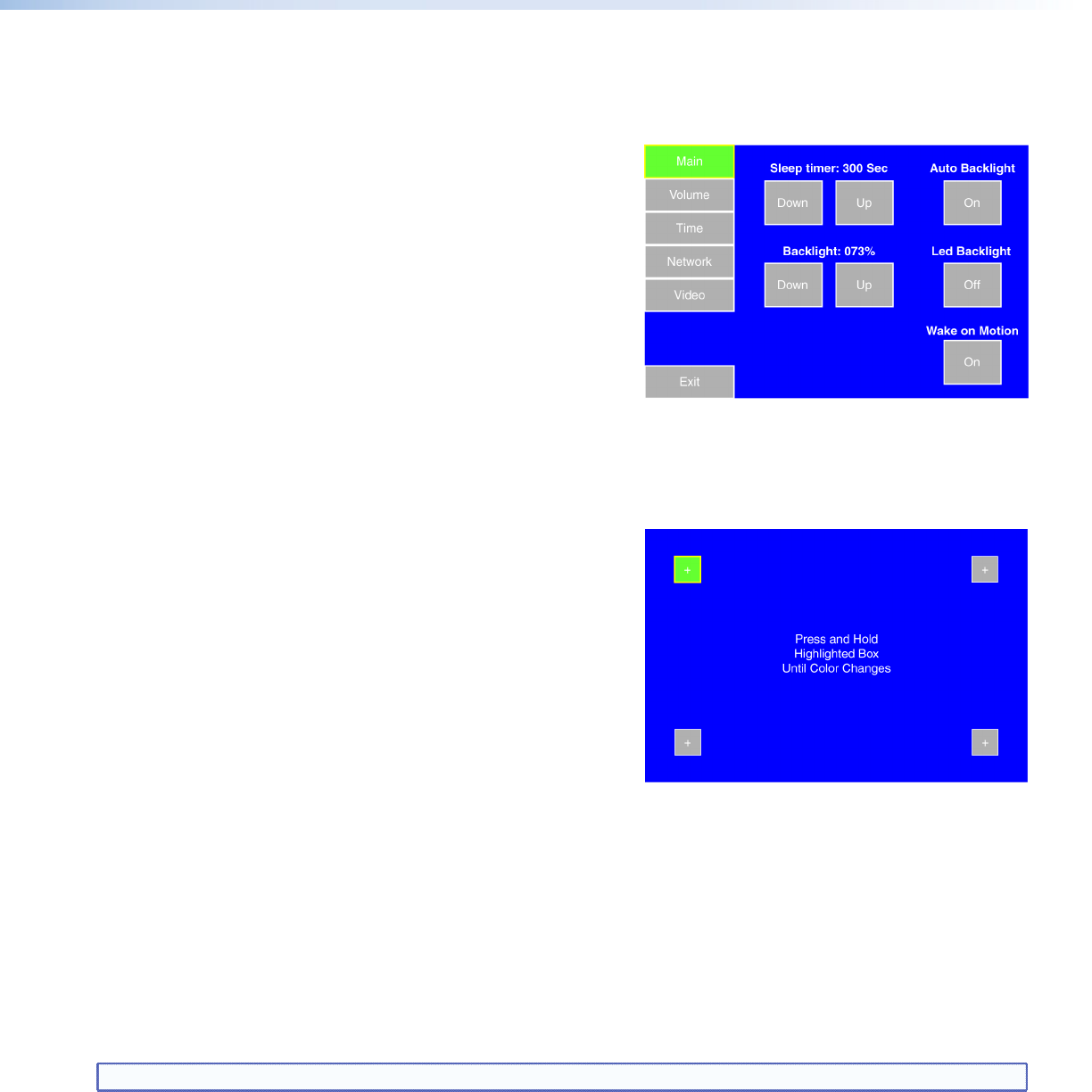

Main (shown at right) — Adjusts the Sleep timer, Backlight, Auto
Backlight, LED Backlight, and Wake on Motion functions.
Volume — Adjusts the Master, Click, Sounds, and Line In volume settings.
Time — Sets the correct time and date.
Network — Sets the IP address and the subnet mask, and enables or disables Dynamic Host Configuration Protocol.
Video — Provides a small video preview window and the controls to set up the video contrast, color, brightness, and tint.
Calibration Menu
1. Press the Menu button a second time to open the calibration-
screen. When all four points have been calibrated, the screen
reopens to the Setup Screen.
2. Press Exit to close the on-screen menus.
3. Reattach the faceplate (see the figure at the bottom of the
opposite page).
Reset Modes
The TLP 700 MV has four reset modes that can be initiated by pressing
the Reset button:
Factory Firmware Mode: Hold the Reset button while applying power to reset the unit back to the base firmware shipped
with the unit.
Run/Stop Events Mode: Hold the Reset button until the reset LED blinks once (3 seconds), then release and press Reset
momentarily (less than 1 second) within 1 second. This mode turns events on or off.
Reset All IP Settings Mode: Hold the Reset button until the reset LED blinks twice (6 seconds), then release and press Reset
momentarily (less than 1 second) within 1 second. This mode resets the IP address, subnet, gateway, port mapping, and
DHCP settings back to factory defaults. The reset LED blinks 4 times in quick succession, confirming the reset and turning
events off. If necessary, reset the IP address, using ARP and the MAC address.
Reset Factory Defaults Mode: Hold the Reset button until the reset LED blinks 3 times (9 seconds), then release and press
Reset momentarily (less than 1 second) within 1 second. This mode causes a reset to factory defaults for everything except
firmware.
NOTE: See the user guide for additional details.
