2.1.3. Attaching the Antenna to the PC Card
When FMM installation is complete, attach the antenna to the FPC 1000 PC card.
The FPC 1000 ships with two types of antennas:
• Standard antenna
• Extended range antenna
2.1.3.1 Attaching the Standard Antenna
The standard antenna allows for improved signal quality and strength.
To attach the standard antenna to the FPC 1000:

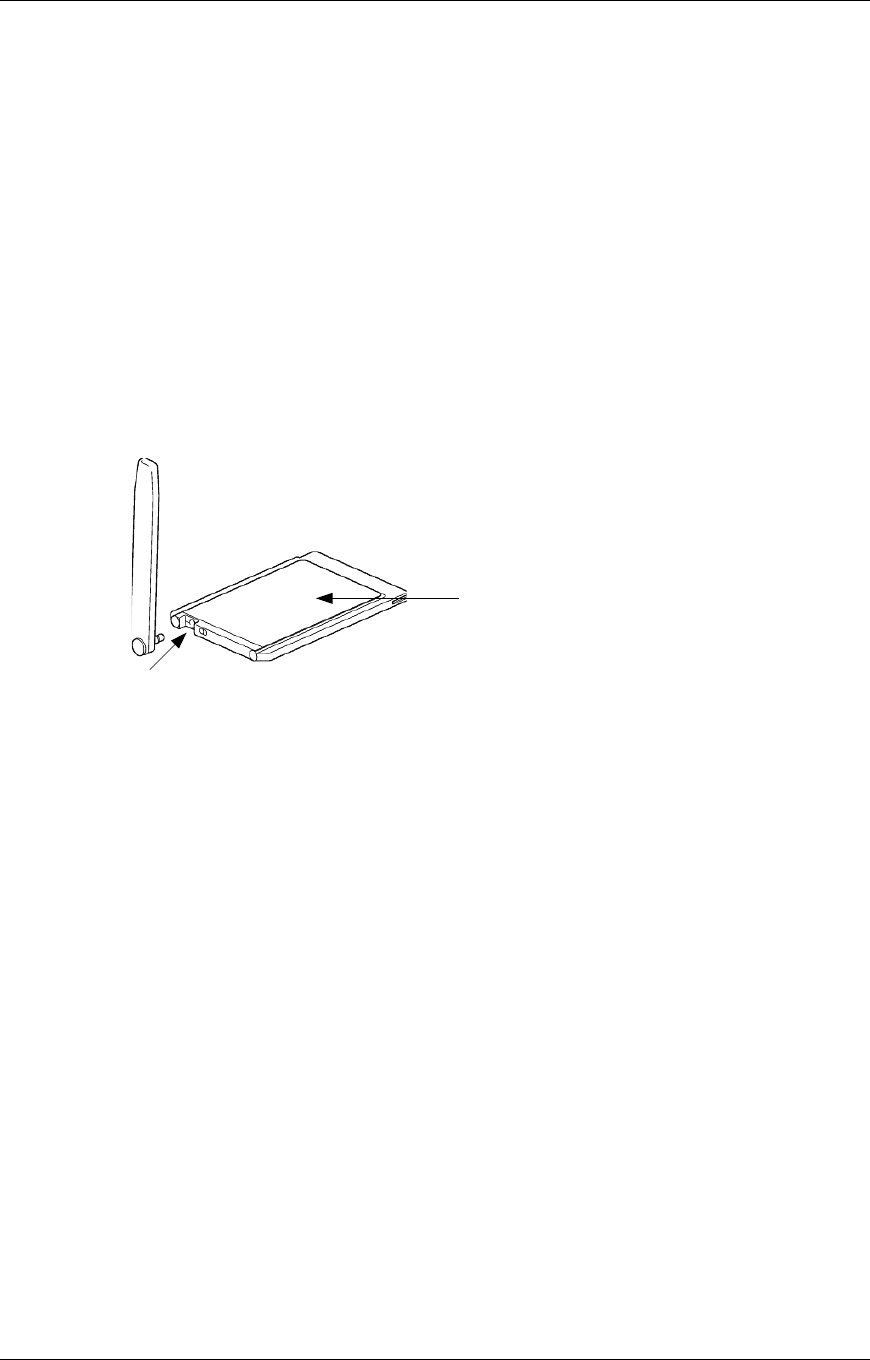

Antenna
Graphic label facing up
Figure 4: Attaching the Standard Antenna
1. Grasp the antenna with the attachment pin facing the FPC 1000
2. Place the antenna pin in the circular connector of the FPC 1000
3. Press firmly until it clicks
Note:
Keep the antenna in the up position to assure maximum performance.
Flarion FPC 1000 Wireless Network Card User Guide
2004 Flarion
Page 12 Flarion Proprietary and Confidential
