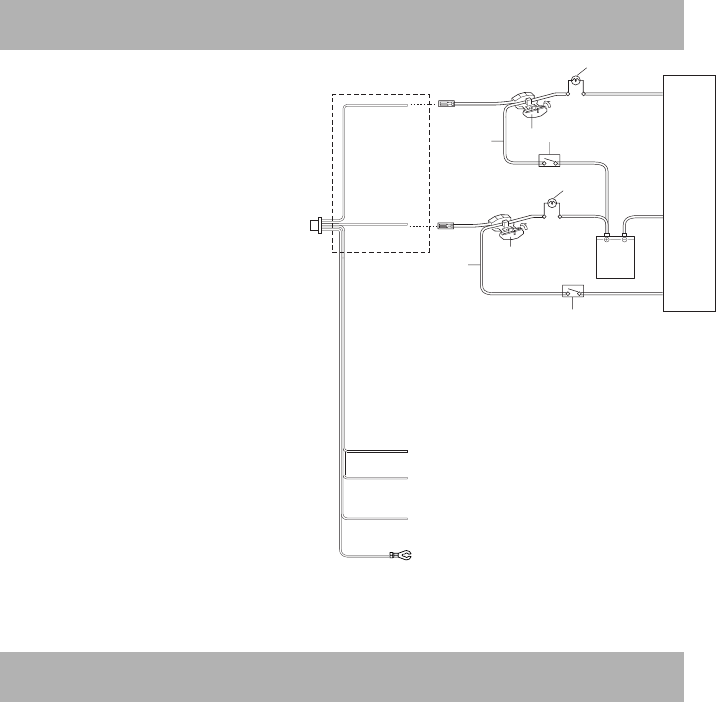

Connections
Cautions
Make connections correctly.
Improper connections may cause a fire or operation
failure.
1 Ground lead (Black)
Connect the lead to a good chassis ground on the
vehicle. Make sure the connection is made to bare
metal and is securely fastened using the sheet metal
screw provided.
2 No Connection
3 ACC power lead (Red)
To ACC power lead powered when engine key
position is ACC.
4 No Connection
5 Foot brake lead (Yellow/Black)
Connect this lead to the foot brake lead powered
when the foot brake is pressed.
6 Hand brake lead (Yellow/Blue)
Connect this lead to the hand brake lead powered
when the hand brake is pulled.
7 Dimmer (White/Blue)
To the Parking Light switch. Backlighting will dim
when lights are turned on at night.
8 Remote control output lead (White/Brown)
To remote control input lead of ALPINE products used
in the system.
For the North American Customers only
p Foot brake lamp
q Brake connector
w Foot brake lead
e Foot brake switch
r Hand (parking) brake lamp
t Hand (parking) brake lead
y Hand (parking) brake switch
MONITOR
Screen Size ......................................................................................................................................... 5.8-type
Display System ...................................................... Low reflection rear projection type TN liquid crystal panel
Drive System ..................................................................................Active matrix drive, normally white display
Number of Picture Elements .................................................................... 280,800 pcs. (H:1200 x V:234 dots)
Effective Number of Picture Elements .................................................................................... 99.99% or more
Light Source ................................................... Internal optical system (U-type cold cathode fluorescent tube)
Dimensions (W x H x D) ........................................................... 160 x 93 x 27 mm (6.30 x 3.66 x 1.06 inches)
Weight ....................................................................................................................................... 298g (10.5 oz)
AV Interface Unit
Dimensions (W x H x D) ............................................................. 72 x 60 x 24 mm (2.84 x 2.36 x 0.95 inches)
Weight ....................................................................................................................................... 128 g (4.5 oz.)
Note: Due to continuous product improvement, specifications and design are subject to change without notice.
SERVICE CARE
• For European Customers
Should you have any questions about warranty, please consult your authorized Alpine Dealer.
• For Customers in other Countries
IMPORTANT NOTICE
Customers who purchase the product with which this notice is packaged, and who make this purchase in countries other than
the United States of America and Canada, please contact your dealer for information regarding warranty coverage.
Specifications
p
e
w
y
t
8
1
7
3
q
r
q
Chassis
Battery
6
5
