English
Hardware Installation Process- 15 -

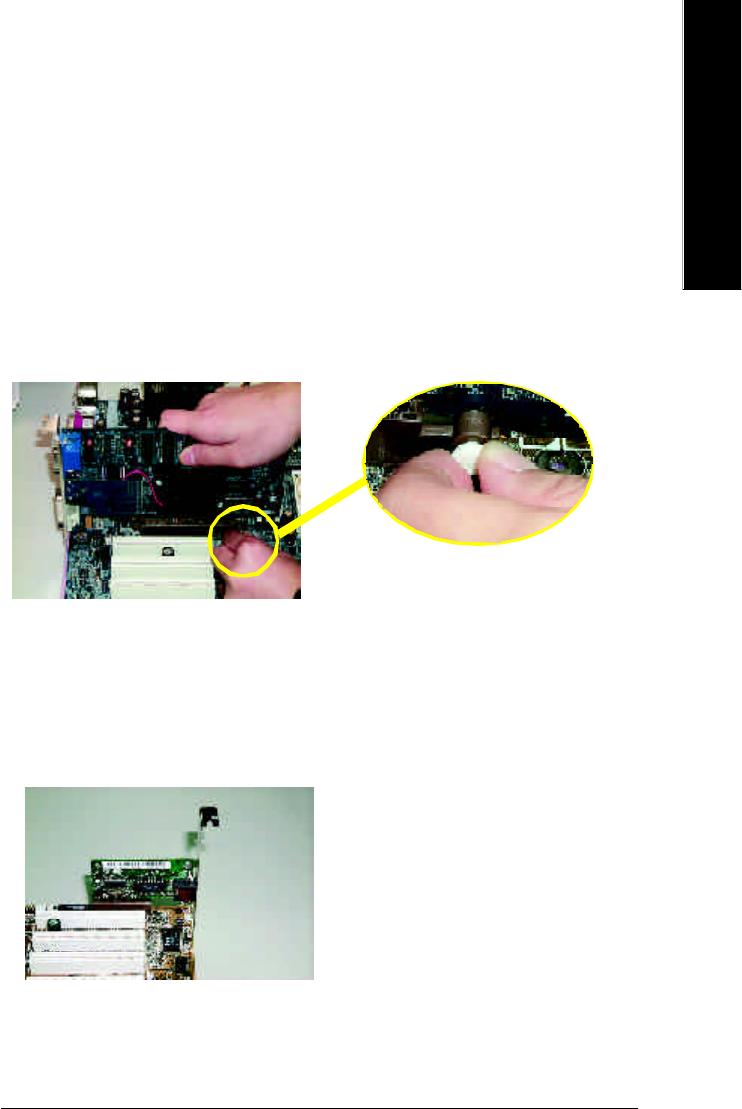

Please carefully pull out the small white-
draw able bar at the end of the AGP slot when
you try to install/ Uninstall the AGP card.
Please align the AGP card to the onboard AGP
slot and press firmly down on the slot .Make
sure your AGP card is locked by the small
white- drawable bar.
Issues To Beware Of When Installing CNR (Only for PCB Ver. : 1.1)
Please use standard CNR card like the one in order to avoid mechanical problem.
Standard CNR card
Step 3: Install expansion cards
1. Read the related expansion card’s instruction document before install the ex pansion card into
the computer.
2. Remove your computer’s chassis cover, screws and slot bracket from the computer.
3. Press the expansion card firmly into expansion slot in motherboard.
4. Be sure the metal contacts on the card are indeed seated in the slot.
5. Replace the screw to secure the slot bracket of the expansion card.
6. Replace your computer’s chassis cover.
7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.
8. Install related driver from the operating system
AGP Card
