Hardware Installation Process
English
- 27 -

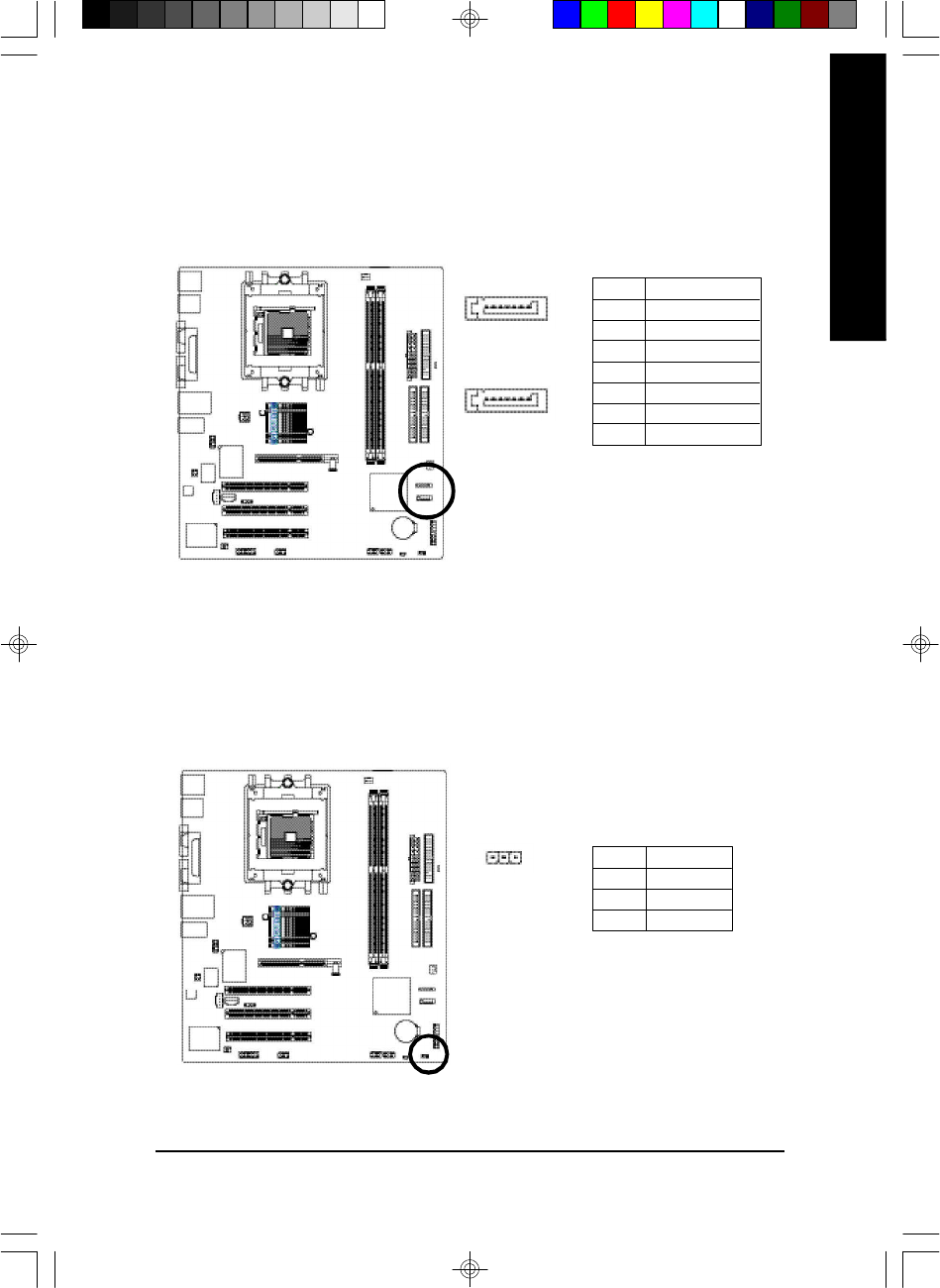

8) PWR_LED
PWR_LED is connect with the system power indicator to indicate whether the system is on/off.
It will blink when the system enters suspend mode. If you use dual color LED, power LED will turn
to another color.
Pin No. Definition
1 MPD+
2 MPD-
3 MPD-
1
7) SATA0 / SATA1 (Serial ATA Connector)
You can connect the Serial ATA device to this connector, it provides you high speed transfer rates
(150MB/sec). If you wish to use RAID function, please use it in unity with BIOS and install the
correct driver to have proper operation. For details, please refer to the "VT8237_SATA_Manual.pdf"
at "http:\\www.gigabyte.com.tw" .
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
SATA1
71
SATA0
71
