Intel Desktop Board DX58SO Product Guide
46
Connecting to the Internal Headers and
Connectors
Before connecting cables to any of the internal headers or connectors, observe the
precautions in “Before You Begin” on page 27. Figure 27 shows the location of the
internal headers and
connectors on Intel Desktop Board DX58SO.
Item Description Item Description
A Front panel audio F IEEE 1394a
B HD Audio Link G USB 2.0 (2)
C Back panel CIR emitter (output) H Alternate front panel power LED
D Front panel CIR receiver (input) I Front panel
E Chassis intrusion J S/PDIF

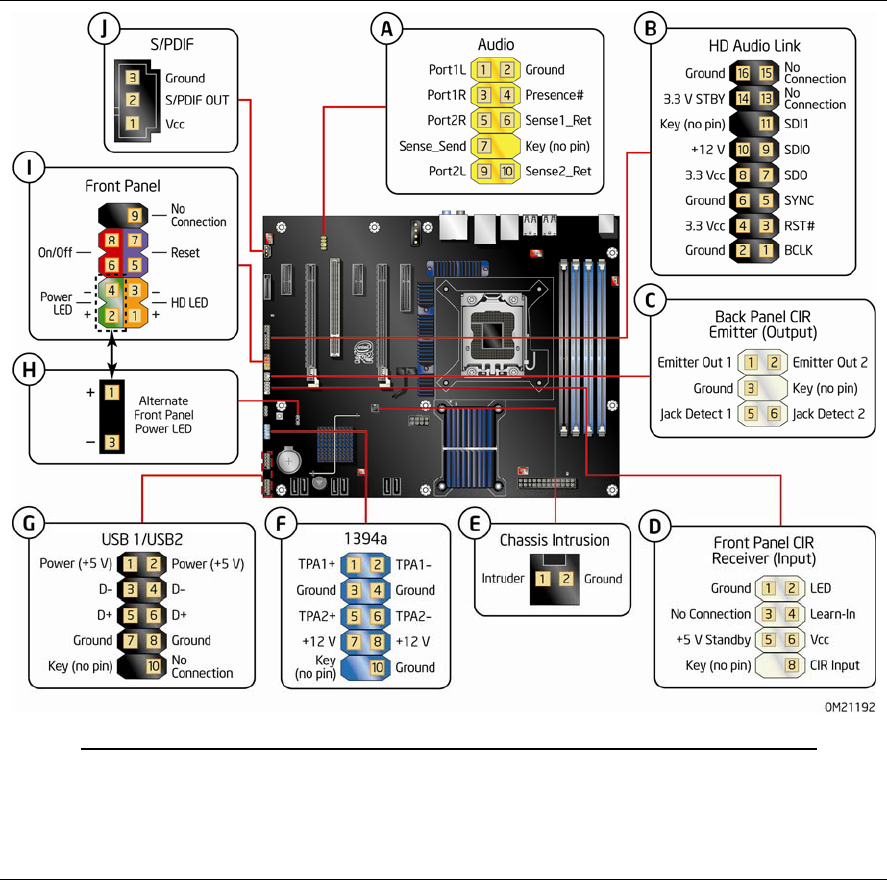

Figure 27. Internal Headers and Connectors
