Connections - continued
VIDEO (L) AUDIO (R)
AV1 IN
VIDEO (L) AUDIO (R)
AV2 IN
ANT
TV
VCR
(R) AUDIO (L) VIDEO
RF Cable
Cable Box

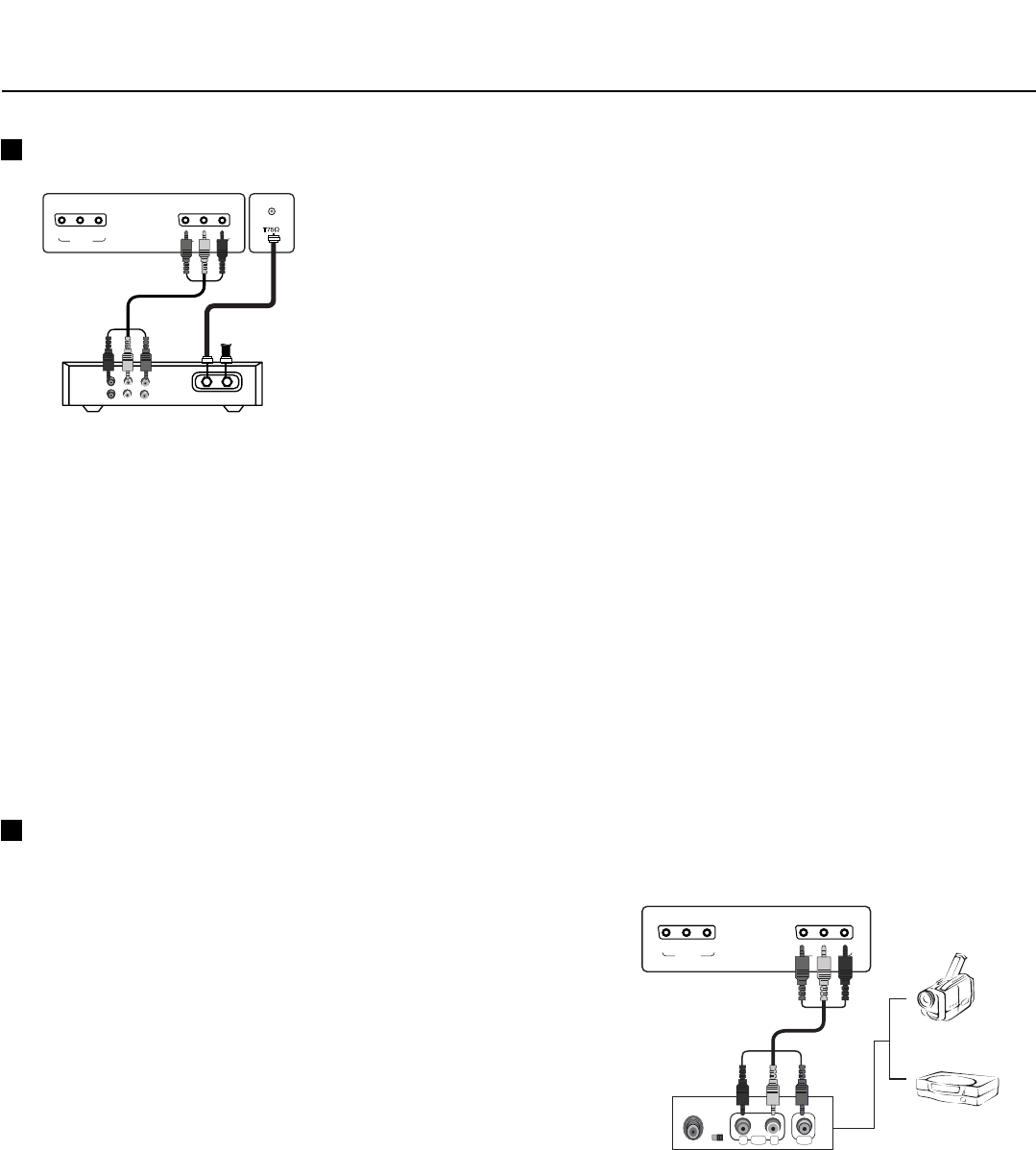

Connect Cable TV
Subscription to a local cable TV service and cable converter required. For further cable TV
information, contact a local cable service provider.
Connection 1
1. Select 3 or 4 with channel switch on cable box.
2. Tune the TV channel to the same selected output channel of cable box.
3. Select channels at the cable box or with the cable box remote control.
Connection 2
1. Connect the audio/video output jacks on Cable Box to the corresponding input jacks on
the TV. When connecting the TV to Cable Box, match the jack color (Video = yellow,
Audio Left = white, and Audio Right = red).
2. Use the INPUT button on the remote control to select AV1, AV2 or AV3.
3. Select channels with the cable box remote control.
Connect External AV Source
Connect the audio/video output jacks on the external A/V equipment to the
corresponding input jacks on the TV. When connecting the TV to external A/V
equipment, match the jack color (Video = yellow, Audio Left = white, and Audio
Right = red).
Viewing Setup
1. Turn on the external A/V equipment.
2. Use the INPUT button on the remote control to select AV 1 , AV 2 or AV 3 .
3. Operate the corresponding external equipment. Refer to external equipment
operating guide.
VIDEO (L) AUDIO (R)
AV1 IN
VIDEO (L) AUDIO (R)
AV2 IN
RL
AUDIO VIDEO
Camcorder
Video Game set
External Equipment
