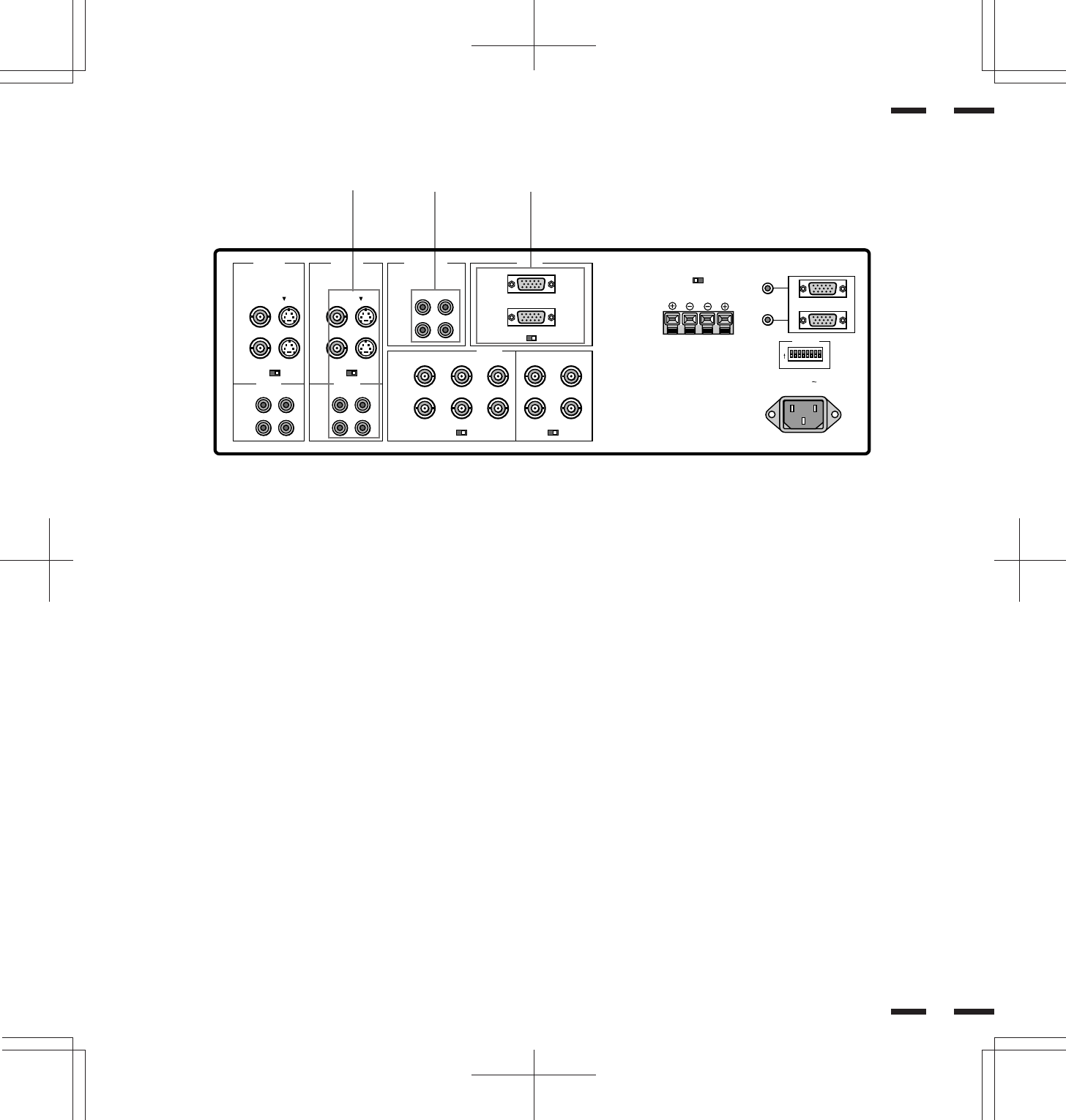

Terminal Board
F
G
VIDEO 1 VIDEO 2 RGB AUDIO RGB 1
REMOTE
PC/EXT CTL
DIP SW
AC IN
SPEAKER SELECT
EXT SPEAKER
RGB 2
AUDIO AUDIO
HIGH 75
R
MONO
IN
THROUGH
OUT
IN
THROUGH
OUT
THROUGH
OUT
IN
BNC S
HIGH 75
THROUGH
OUT
IN
R
THROUGH
OUT
IN
R
THROUGH
OUT
IN
BNC S
HIGH 75
IN
THROUGH
OUT
R/C
R
/P
R
G/Y/Y B/C
B
/P
B
H/CS V
HIGH 75HIGH 75
SPEAKRES MUST
HAVE MORE THAN
5WATT RATING
INPEDANCE 8 OHM
RIGHT LEFT
INT EXT
IN
OUT
12345678
ON
()
L
MONO
()
L
MONO
()
L
H
F RGB 1 (Mini D-SUB 15 pin)
RGB Input/Throughout.....Attach either end of the RGB Cable to a
computer, and then attach the other end to Input terminal. You can
then use Throught out terminal, if you wish, to output the computer
signal to a monitor. (If you do use a second monitor, turn the
monitor switch to “on.”)
75 /HIGH Impedance Select Switch.....This switch should be “75
for normal use without external termination or when your RGB
signal should be terminated with 75. Switch to the “HIGH”
position when you have another monitor attached to your RGB
through-put connector.
G RGB AUDIO
AUDIO R IN.....This is where you connect RGB right audio output
from a computer or another RGB source.
AUDIO L(MONO)IN.....This is where you connect RGB left audio
output from a computer or another RGB source.
AUDIO R THROUGH OUT.....Connect to a second monitor’ s
RGB right audio input.
AUDIO L THROUGH OUT.....Connect to a second monitor’s
RGB left audio input.
H VIDEO 2
VIDEO 2 IN (BNC type).....Connect another VCR or laser disk player
here to display the video.
S-VIDEO 2 IN.....Connect S-Video input from another external
source like a VCR.
THROUGH OUT (BNC type).....Connect to a second monitor’ s video
input to relay the video signal input at VIDEO 2 IN.
THROUGH OUT (S-VIDEO).....Connect to a second monitor’ s S-
connector input to relay the video signal input at S-VIDEO 2 IN.
75 /HIGH Impedance Select Switch for BNC type.....Set to “75
during normal operation. In multiple connections using VIDEO 2
IN and THROUGH OUT (BNC type) terminals, set to “HIGH” on all
but the last monitor. Set to “75 ” on the last monitor only.
AUDIO R IN.....This is your right channel audio input for stereo
sound.
AUDIO L IN (MONO).....This is your left channel audio input for
stereo sound coming from video equipment or audio system. It
also serves as the mono audio input.
AUDIO R THROUGH OUT.....Connect to a second monitor’ s right
channel audio input.
AUDIO L THROUGH OUT.....Connect to a second monitor’ s left
channel audio input.
